TrippNT PVC Fume Hood Shelf 3 Feet 36-Inch | ASHRAE 110 Laminar Flow Lab Hood Staging 50215

Technical Narrative

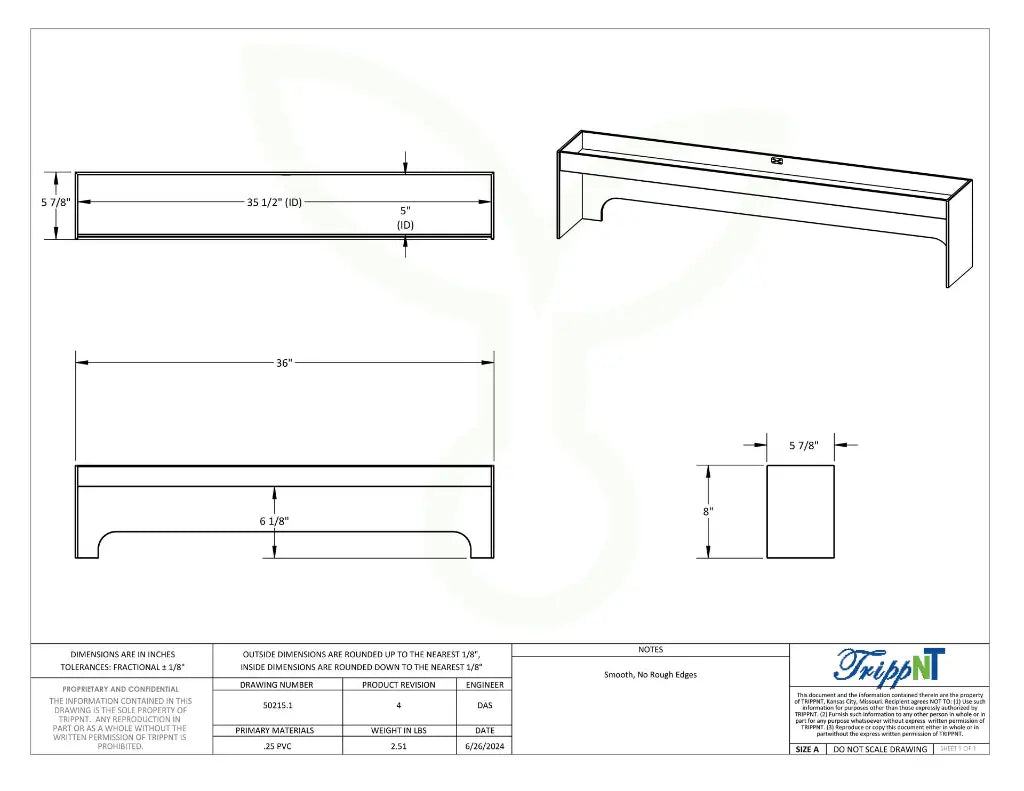

The TrippNT 50215 PVC Fume Hood Shelf, 3 Feet is a procurement-grade interior fume hood shelf engineered for 36″, 48″, and 60″ variable air volume (VAV) and constant air volume (CAV) walk-in and bench-top fume hoods where consumable staging inside the hood is needed without disrupting face velocity or laminar airflow. At 36″ W x 8″ H x 5⅞″ D in ¼″ white PVC, the shelf is sized to span the full interior width of a standard 36″ laboratory fume hood — or to occupy one half of a 48″ or wider hood — elevating bottles, reagent stocks, waste jugs, and small apparatus off the hood's work surface, creating vertical clearance below for larger equipment while keeping the most-used reagents at arm's reach at the rear interior.

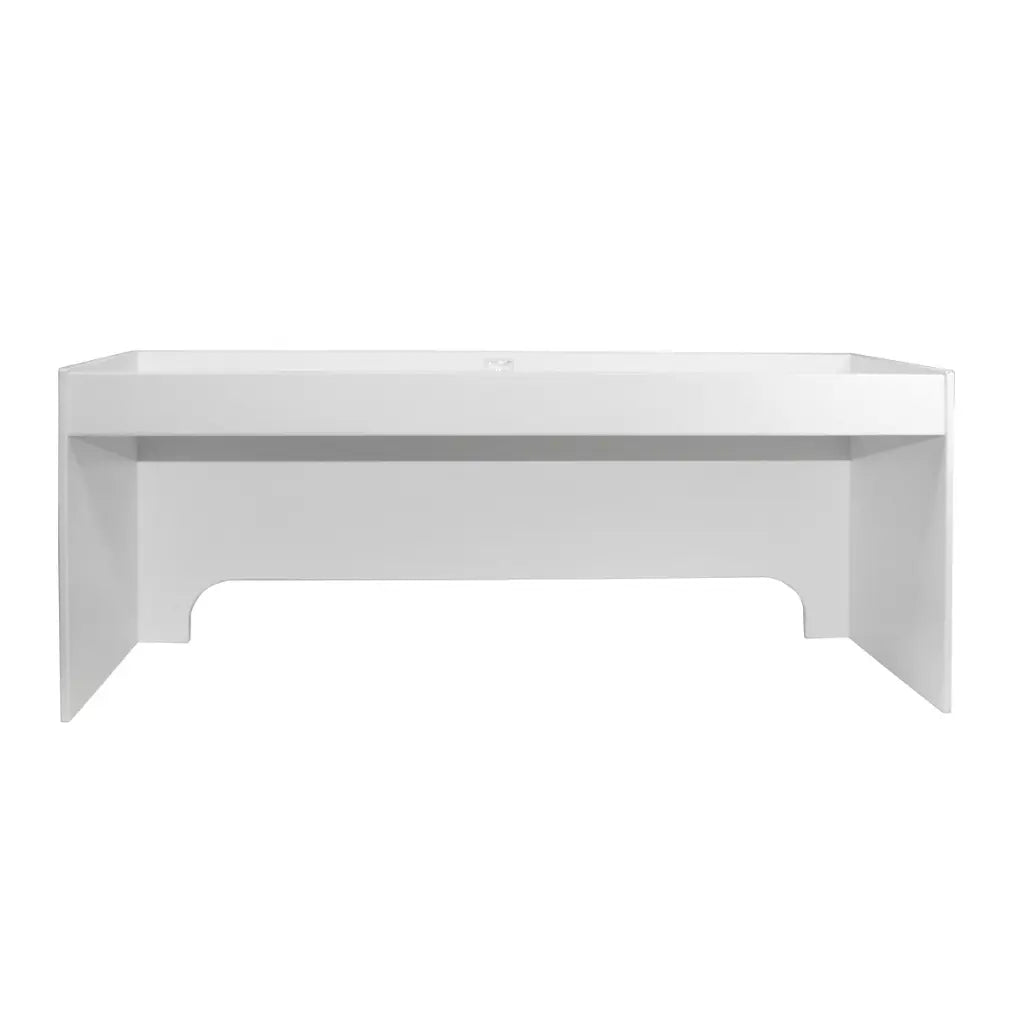

The open-frame ¼″ PVC construction allows laminar airflow to pass freely through and around the shelf without creating dead-air zones or face-velocity disruptions that would compromise ASHRAE 110-2016 and OSHA 29 CFR 1910.1450 fume hood performance requirements. A 1″ safety lip on the shelf perimeter contains drips, rolling bottles, and incidental spills before they reach the hood work surface. The non-porous PVC substrate withstands routine decontamination with 70% IPA and dilute sodium hypochlorite. Ships fully assembled. Backed by TrippNT’s 100% Lifetime Guarantee. Available in 4-foot (50216) and 5-foot (50217) widths for wider hood models.

Technical Specifications

Laboratory and Clinical Applications

The 50215 is deployed across laboratory and regulated environments where interior fume hood staging is required, including academic chemistry teaching lab bench-top hoods (36″ models), pharmaceutical synthesis and QC fume hoods, organic chemistry reaction solvent staging, analytical chemistry acid and base reagent staging, industrial QC multi-solvent HPLC mobile-phase hood stations, biotechnology cell-culture medium preparation hoods, environmental toxicology sample-prep hoods, forensic chemistry extraction hoods, food-and-beverage R&D solvent staging, USP 800 hazardous drug compounding hoods (36″ HD compounding isolator interior staging), and contamination isolation boxes in BSL-2 environments. The 36″ format is also used in pairs inside 72″ wide-aisle hoods to create a continuous 72″ elevated rear staging surface with a center gap for electrical outlets and gas valves.

Product Documentation

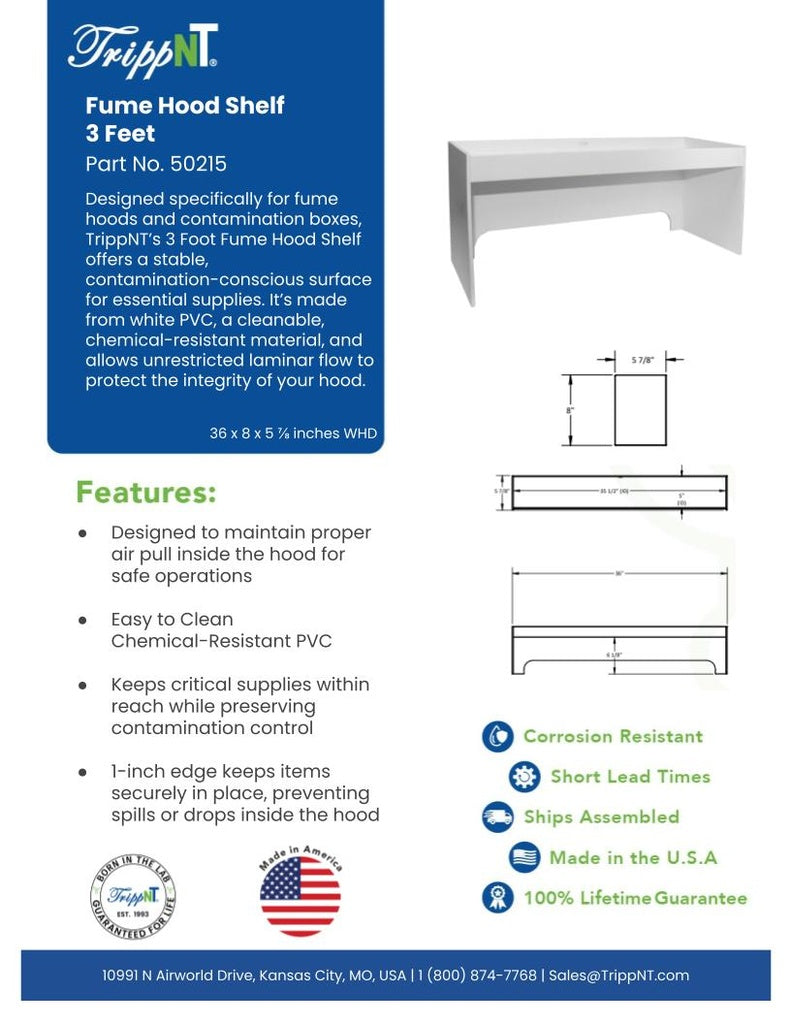

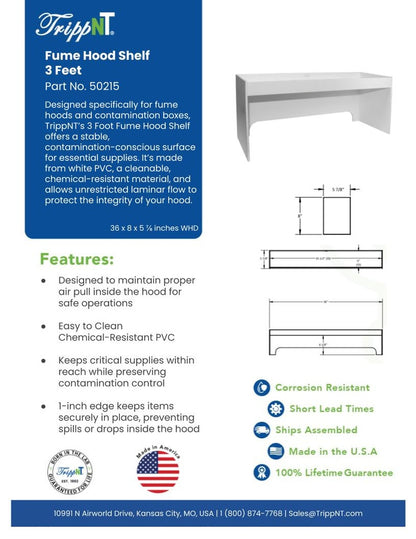

• Sales Sheet — 50215 PVC Fume Hood Shelf 3 Feet (PDF)

Made in the U.S.A. & Lifetime Guarantee

Proudly manufactured in the United States by TrippNT. This fume hood shelf is backed by a 100% Lifetime Guarantee, ensuring it is a permanent asset for your laboratory. Institutional pricing and bulk discounts are available for universities, hospital systems, and government agencies.

Frequently Asked Questions

Does the open-frame PVC design maintain ASHRAE 110 fume hood face velocity compliance — will placing this shelf inside the hood void performance certification?

The open-frame ¼″ PVC construction was specifically designed to allow laminar airflow to pass freely through and around the shelf without creating the dead-air zones or turbulence that a solid-panel shelf would introduce. Because the structure does not obstruct the horizontal sash plane or rear baffle slots, face velocity distribution across the sash opening is maintained. However, loading the shelf with large-footprint items that block airflow laterally can affect performance; follow your hood manufacturer’s interior equipment placement guidelines and conduct annual ASHRAE 110 certification testing with the shelf in its loaded configuration to confirm ongoing compliance.

What is the maximum recommended load for the 36-inch 50215, and does it fit inside 36-inch, 48-inch, or 60-inch fume hood models?

The 36″ W shelf spans the full interior width of a standard 36″ bench-top or walk-in fume hood and fits inside 48″ and 60″ hoods as a partial-width rear shelf. A typical recommended working load for ¼″ PVC at 36″ unsupported span is 8–12 lb distributed across the full shelf width — sufficient for 6–8 standard 500 mL glass reagent bottles or 4 x 1-liter bottles. For heavier concentrated loads exceeding this range, specify the same-dimension polyethylene version (50315) which offers a higher load rating. For 48″ hoods needing full-width coverage, specify the 50216.
