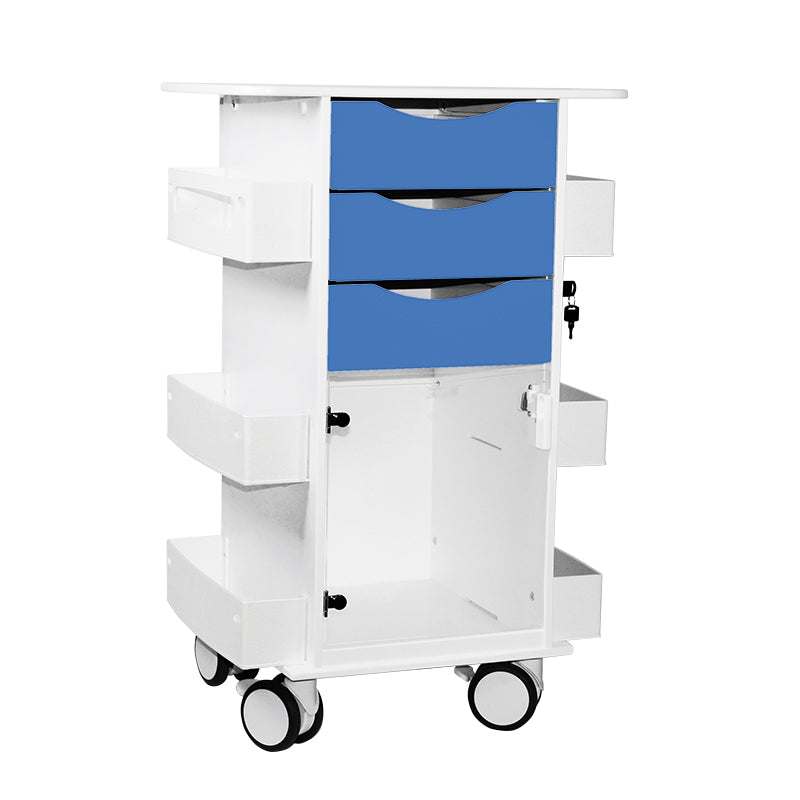

TrippNT Core DX Cart with Global Blue Drawers and Hinged Door — HDPE Clinical Supply Cart with Hinged Clear Acrylic Bulk Storage Door
The TrippNT Core DX Cart with Global Blue Drawers and Hinged Door (SKU 53522) is the Global Blue drawer color variant of the Core DX Hinged Door Cart family. All structural and performance specifications are identical to the White (53517): 22⅞″ W × 35⅝″ H × 19⅝″ D, 66 lb, HDPE + acrylic + ABS + ACP construction, 3 full-extension locking drawers, 6 side shelves (4 open + 2 dispensing), locking bulk storage with hinged clear acrylic door, built-in handles, 4-inch twin-wheel casters (2 locking + 2 swivel), 0003 key lock. LTL freight required due to size.
Global Blue drawers are specified for blue-coded department programs, facilities using blue as the designated color for a specific supply category, and environments where the blue color provides visual differentiation in a mixed-color fleet. For full specification and door-type selection details refer to the Core DX Cart with White Drawers and Hinged Door (53517). Available in 6 drawer color variants. Ships fully assembled.
Technical Specifications
| Specification | Detail |
|---|---|
| Material (Body) | 1/2″ HDPE + 3/16″ ABS + 1/8″ ACP |
| Material (Door) | 3/16″ Clear Acrylic (hinged) |
| Drawer Color | Global Blue |
| Drawers | 3 full-extension locking |
| Side Shelves | 6 total (4 open + 2 dispensing) |
| Bulk Storage Door | Hinged clear acrylic (~14–16-inch forward swing clearance required) |
| Lock | Key (0003 type) |
| Casters | 4-inch non-marking twin-wheel: 2 locking + 2 swivel |

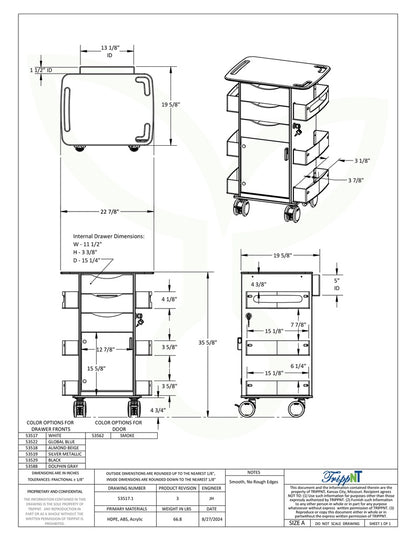

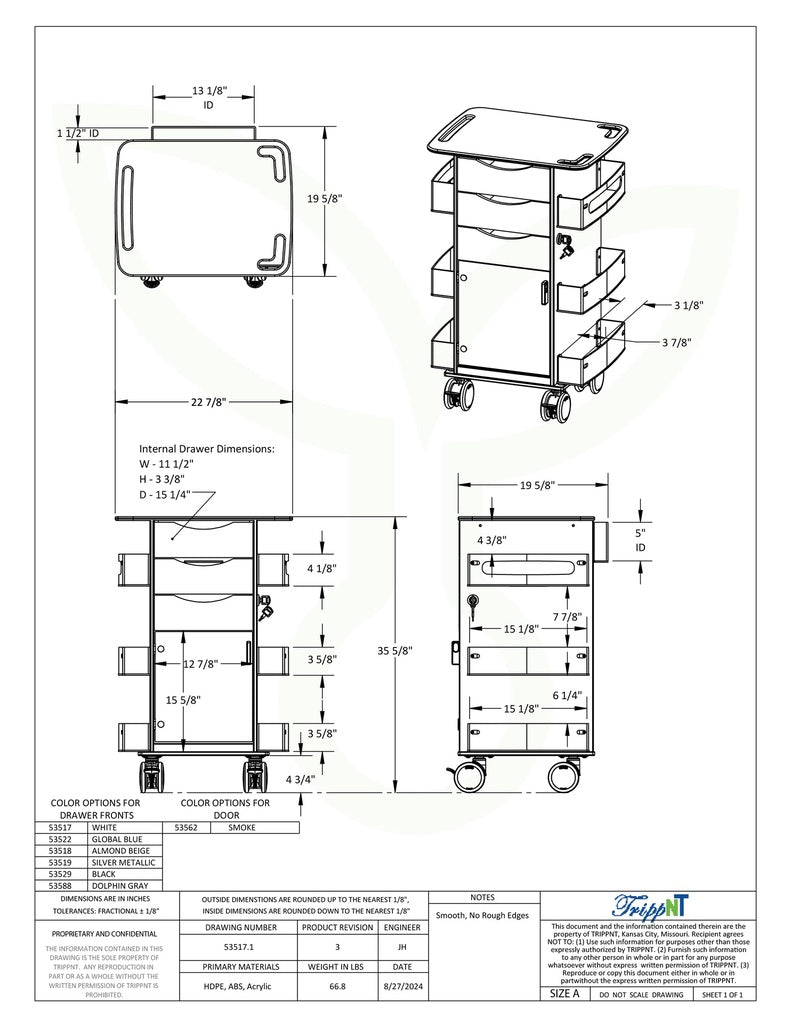

| Product Dimensions (W × H × D) | 22⅞″ × 35⅝″ × 19⅝″ |
| Product Weight | 66 lb |
| Shipping (L × W × H) | 23″ × 26″ × 40″ |
| Shipping Weight | 91 lb — LTL freight required |
| UPC | 727431143150 |
| HTS Code | 9403.7 (furniture) |
| Country of Origin | United States (Kansas City, MO) |
Product Documentation
Made in the U.S.A. & Lifetime Guarantee
Proudly manufactured in the United States by TrippNT. Backed by a 100% Lifetime Guarantee. Institutional pricing, volume discounts, and LTL freight coordination available.
Frequently Asked Questions
When should I choose the Hinged Door (53517 series) over the Sliding Door (53370 series)?
Choose the Hinged Door when: (1) the cart position has at least 14–16 inches of clear space in front of the cart when parked, and (2) the workflow frequently requires simultaneous access to both the drawer column and the bulk storage compartment without separate door operations. The hinged door swings fully open and stays open, leaving both storage zones simultaneously accessible and visible. Choose the Sliding Door when forward clearance is constrained — the sliding door traverses laterally and requires zero forward clearance, making it suitable for wall-parked or flanked positions where a hinged door would hit an obstruction.
Is the key type the same for the Hinged Door and Sliding Door Core DX carts?
Yes. Both the Core DX Hinged Door (53517 series) and Core DX Sliding Door (53370 series) use the 0003 key type (SKU 51647 for replacement keys). The key locks both the drawer column and the bulk storage door simultaneously with a single turn.
