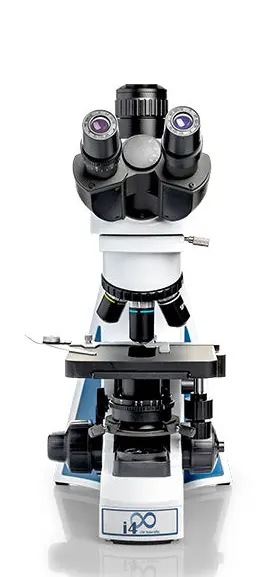

Infinity Semi-Plan Trinocular Microscope – i-4 4-Objective LED C-Mount

Professional Infinity Semi-Plan Trinocular Microscope for Advanced Imaging

The Infinity semi-plan trinocular microscope combines superior optical performance with versatile functionality, making it ideal for clinical, research, and educational laboratories. This modular i-4 microscope features four infinity semi-plan objectives (4×, 10×, 40×R, 100×R oil), a focusable 0.5× C-mount eyetube, and cool, long-life LED illumination for consistent, high-contrast imaging.

Ergonomic Design and Dual Viewing Options

With an inclined, 30° rotatable trinocular head and interpupillary range of 48–75 mm, this Infinity semi-plan trinocular microscope ensures comfortable viewing for all users. The adjustable focusable C-mount adapter allows direct camera integration for digital imaging and documentation.

Precision Mechanical Stage and Optics

• Mechanical Stage: 140 × 130 mm with coaxial metal rack & pinion controls

• Objectives: Infinity semi-plan 4×, 10×, 40×R, 100×R (oil) with 30-year anti-fungal coating

• Eyepieces: Widefield 10×/18 mm for clear, distortion-free views

• Condenser: Abbe NA 1.25 with iris diaphragm for optimized contrast

Advanced Features for Laboratory Excellence

Automatic temperature compensation is built into the LED illumination system, maintaining consistent brightness without overheating. The Infinity semi-plan trinocular microscope’s anti-fungal coated optics and durable metal construction deliver years of reliable performance.

Wide Range of Applications

From histology and pathology to veterinary diagnostics and materials science, this Infinity semi-plan trinocular microscope supports diverse workflows. Capture high-resolution images using the C-mount adapter, then analyze samples with precision optics and ergonomic handling.

Ready-to-Use Complete Package

Every Infinity semi-plan trinocular microscope ships with a dust cover, calibration tools, cleaning cloth, C-mount adapter, and full user manual. No external power source is required beyond standard 100–240 V input.
