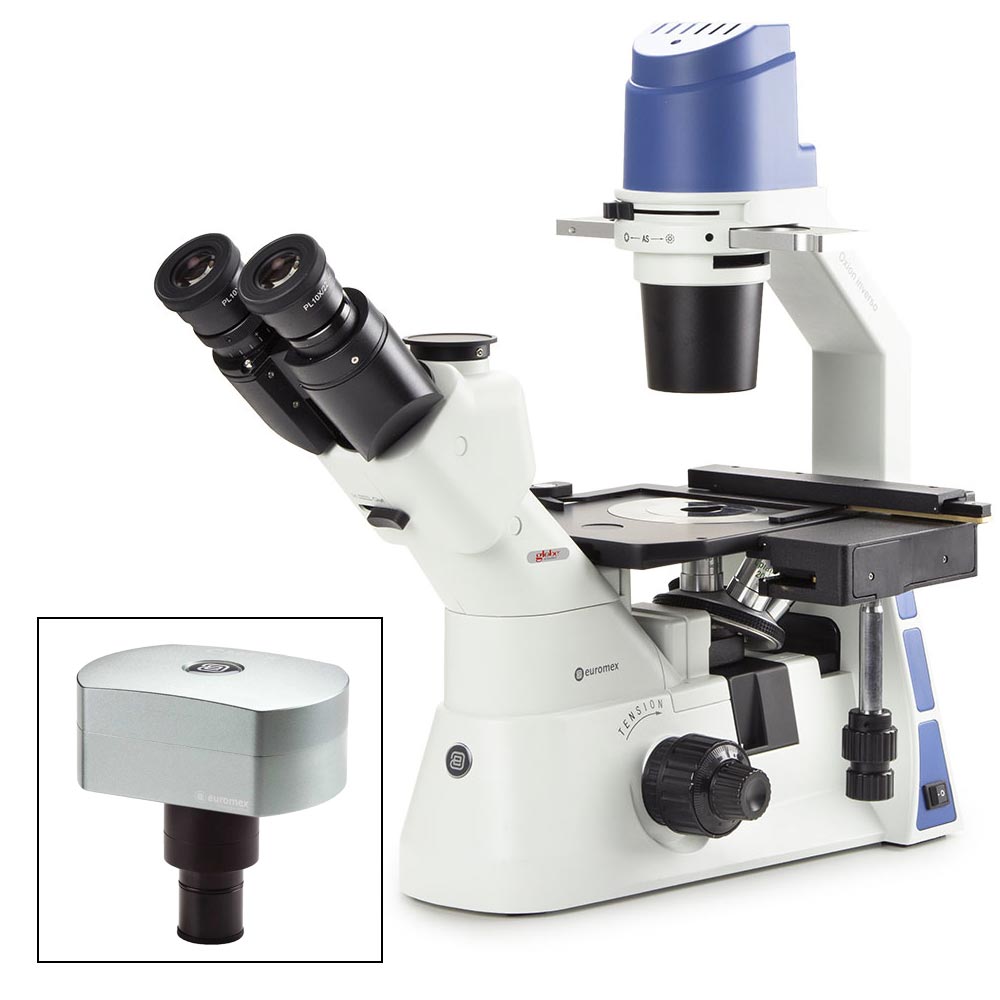

Globe Scientific Oxion Inverso Trinocular Inverted Phase Contrast Microscope with CMEX-18 Pro Camera (EOX-2053-PLPH-DC18)

The Globe Scientific Oxion Inverso with CMEX-18 Pro Camera (EOX-2053-PLPH-DC18) is an inverted trinocular phase contrast microscope built for routine cell culture observation and tissue culture monitoring. With Plan phase PLPH 10x/20x/40x objectives compensated for 1.2mm thick dish bottoms, 5W LED transmitted illumination, and the bundled 18MP CMEX-18 Pro USB-3 camera, this system provides a complete digital cell culture imaging workstation. A transportation box is included for safe relocation between labs or facilities.

Oxion Inverso vs. Delphi-X Inverso: Choosing the Right Inverted Microscope

Globe Scientific offers two inverted microscope platforms. The Oxion Inverso (this model) covers phase contrast cell culture observation at approximately one-sixth the price of the Delphi-X Inverso (EDI-1053-PLPHFI). Choose the Oxion Inverso for routine cell culture monitoring, confluence assessment, and contamination checks. Choose the Delphi-X Inverso when you need semi-apochromatic color correction, fluorescence capability, DIC, or the higher resolving power required for advanced research imaging.

Phase Contrast for Cell Culture

Phase contrast illumination converts differences in specimen thickness and refractive index into visible contrast — making unstained living cells clearly visible against the culture medium. The PLPH objectives are specifically computed to compensate for the 1.2mm thick plastic bottoms of standard Petri dishes and culture flasks. This means sharp, high-contrast phase images of cells in their native culture environment without any sample preparation.

Optical Configuration

• Objectives: PLPH 10x/20x/40x Plan phase, long working distance IOS

• Nosepiece: Quintuple revolving

• Illumination: 5W LED transmitted

• Stage: Mechanical, accommodates culture vessels and multi-well plates

Bundled Camera and Transport Box

• Camera: CMEX-18 Pro, 18MP, USB-3, 1/2.3" CMOS with ImageFocus Alpha software

• Transport Box: Protective case included for safe relocation

Applications

Cell culture monitoring and confluence assessment, tissue culture contamination screening, IVF embryo observation at clinical fertility centers, stem cell colony tracking, wound healing assays, and general live-cell observation in research and clinical laboratories. The phase contrast system reveals cell morphology, division stages, and viability without staining or fixation.

Technical Specifications

• SKU: EOX-2053-PLPH-DC18

• Microscope Type: Inverted, trinocular, phase contrast

• Camera: CMEX-18 Pro 18MP USB-3

• Certification: CE certified

• Warranty: 10 years

Need the microscope without a camera? See the EOX-2053-PLPH.
