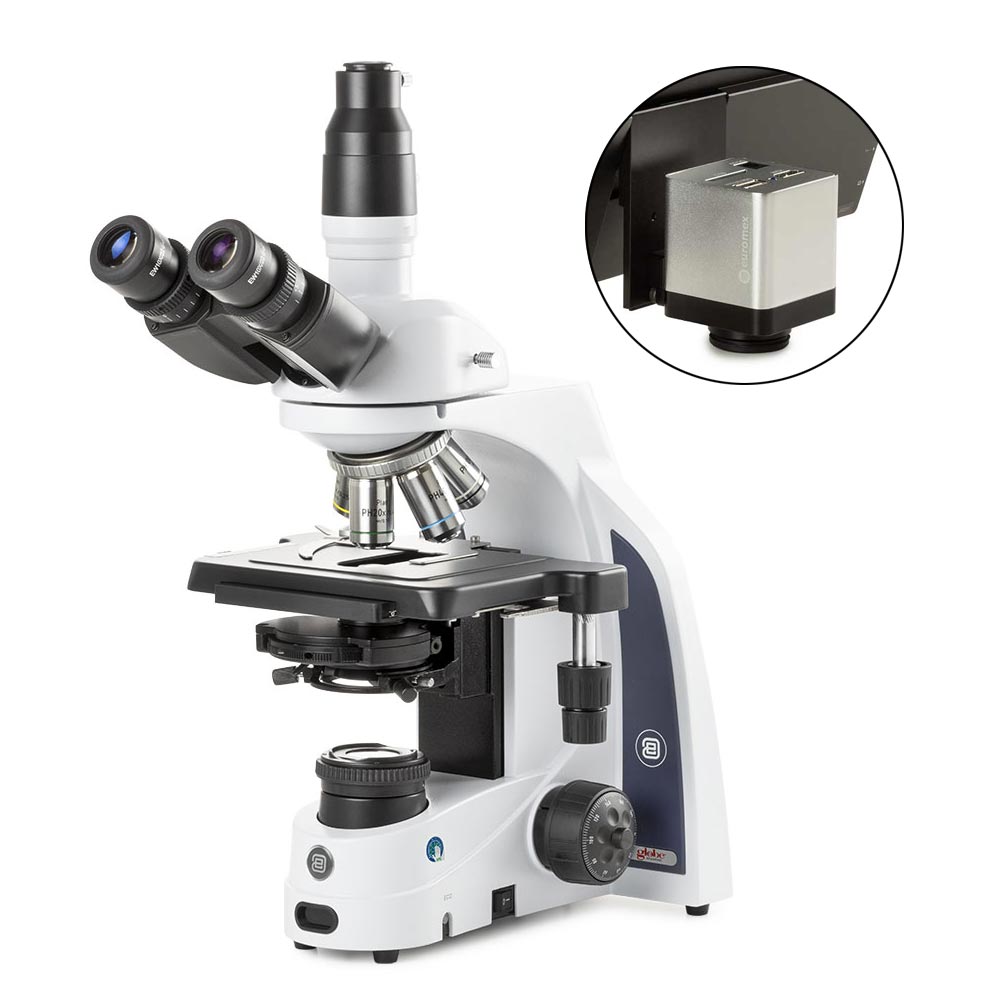

Globe Scientific iScope Trinocular Phase Contrast Microscope with HD-Mini Camera and 13" Screen (EIS-1153-PLPHI-HDS)

The Globe Scientific iScope Phase Contrast Microscope with HD-Mini Camera and Screen (EIS-1153-PLPHI-HDS) pairs Zernike phase contrast optics with a standalone 2MP camera and 13-inch HD display for real-time digital observation without a computer. Plan phase PLPHI 10/20/S40/S100x oil IOS objectives, a Zernike phase contrast disc condenser with darkfield stop, and the ergonomic iScope rackless stage platform make this configuration ideal for clinical labs, teaching environments, and group discussions where everyone needs to see the same field simultaneously.

Zernike Phase Contrast with Darkfield Capability

The Zernike phase contrast disc condenser includes matched annuli for each phase objective, converting optical path differences in transparent specimens into visible amplitude contrast. The integrated darkfield stop adds a second contrast mode — darkfield illumination scatters light around the specimen, making cells, bacteria, and particles appear bright against a black background. Switching between phase contrast and darkfield is as simple as rotating the condenser disc, with no component swapping required.

Why the HD-Mini Screen Bundle

The HD-Mini camera and 13-inch screen eliminate the need for a computer at the microscope workstation. Turn on the screen, and the live microscope image appears immediately. Built-in mouse-driven software captures images to the included 32GB SD card. This is ideal for clinical labs where bench space is limited, teaching labs where students gather around a shared display, and consultation settings where a pathologist needs to show a finding to a colleague in real time. The HDMI output also connects to larger external monitors or projectors for classroom use.

Optical Configuration

• Eyepieces: EWF 10x/22mm

• Objectives: Plan phase PLPHI 10x/20x/S40x/S100x oil IOS

• Condenser: Zernike phase contrast disc with darkfield stop

• Stage: Rackless with ergonomic low-position controls

• Illumination: 3W NeoLED Koehler

Included Camera System

• Camera: HD-Mini, 2MP, 1280x1080p

• Display: 13-inch HD screen

• Storage: 32GB SD card

• Software: Built-in mouse-driven capture

Applications

Clinical hematology (unstained buffy coat examination, platelet assessment), urinalysis sediment analysis under phase contrast, cytology wet prep examination, parasitology (motile organisms in saline mounts), semen analysis, live cell culture observation, microbiology (unstained wet mounts), and teaching demonstrations where phase contrast principles are being demonstrated to a group.

Technical Specifications

• SKU: EIS-1153-PLPHI-HDS

• Microscope Type: Compound, trinocular, phase contrast + darkfield

• Certification: CE certified

• Warranty: 10 years

Need this microscope without the camera? See the EIS-1153-PLPHI. Need the binocular version? See the EIS-1152-PLPHI.
