Global Industrial Emergency Eyewash Station Features

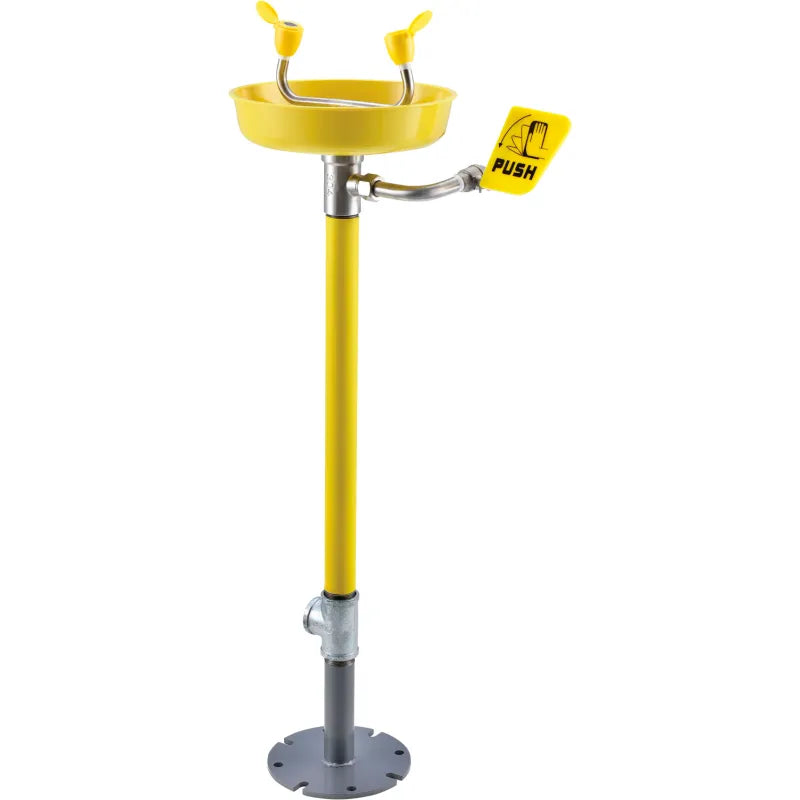

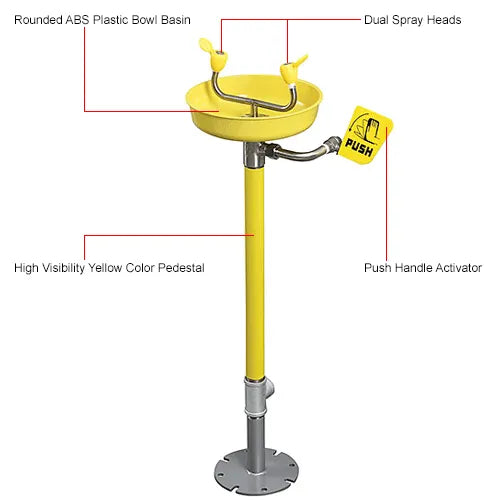

Engineered for facilities where wall mounting is impractical or insufficient to reach the required ANSI placement zone, the Global Industrial 708382 is a pedestal-mounted emergency eyewash station compliant with ANSI Z358.1-2014. Schedule 40 galvanized steel pipe with safety yellow polyethylene covers resists corrosion in industrial environments. An 11.5-inch ABS plastic bowl and dual spray heads with flip-top dust covers deliver flushing fluid at 5.15 gallons per minute. Push-handle activation opens a stay-open ball valve for hands-free operation during flushing.
Pedestal positioning allows placement in open work areas, mid-aisle in laboratories, and at freestanding workbenches without requiring a structural wall within the required 10-second travel distance from the hazard. Each unit includes an ANSI compliant identification sign and a factory-tested valve and spray head assembly. Connection uses a standard inlet and outlet tee for separate inflow and waste outflow. Backed by a 1-year limited warranty from Global Industrial.
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Global Industrial |
| Item # | 708382 |
| Mounting Type | Pedestal — freestanding floor installation |
| Pipe & Fittings | Schedule 40 galvanized steel with safety yellow polyethylene covers |
| Bowl | 11.5" ABS plastic |
| Spray Heads | Dual, with flip-top covers to protect from airborne contaminants |
| Activation | Push-handle — stay-open ball valve for hands-free operation |
| Flow Rate | 5.15 GPM |

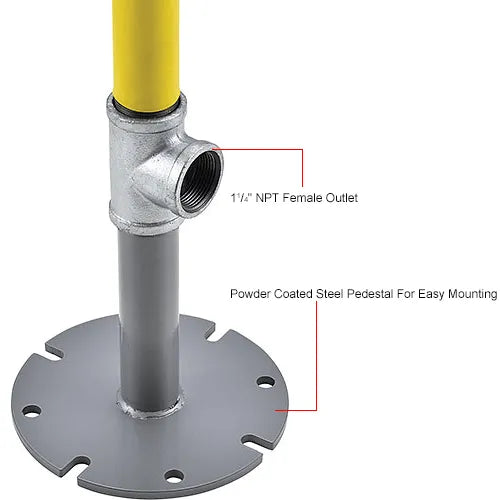

| Water Connection | Inlet and outlet tee — separate inflow and waste outflow |
| Color | Safety yellow |
| Compliance | ANSI Z358.1-2014 |
| Includes | ANSI compliant identification sign |
| Quality Assurance | Valves and spray heads factory-tested |
| Warranty | 1-year limited |
Applications
To meet OSHA 29 CFR 1910.151(c) and ANSI Z358.1-2014 requirements, the Global Industrial 708382 is installed at chemical handling workstations, laboratory benches and fume hood areas, manufacturing lines using corrosive materials, battery charging areas, janitorial and chemical storage rooms, and any open floor area where a freestanding pedestal eyewash provides faster worker access than a wall-mounted unit at the room perimeter.
Pedestal Mount vs. Wall Mount Eyewash
| Feature | Pedestal Mount (708382) | Wall Mount (708381) |
|---|---|---|
| Mounting | Pedestal — freestanding, no wall needed | Wall-mounted, requires structural wall |
| Placement | Open floor areas, mid-workspace positioning | Along walls, near work surfaces |
| Installation | Plumb to floor drain; no wall anchoring | Wall anchoring + plumbing required |
| Accessibility | 360° approach from any direction | Frontal approach only |
| Relocation | Replumbing required to move | Replumbing + reanchoring required |
| Price | $349 | $305 |
| Compliance | ANSI Z358.1-2014 | ANSI Z358.1-2014 |
Academic and Institutional Pricing
LabSupplies.com offers tiered quantity pricing for academic and research institutions. As an authorized dealer, we ship directly from USA inventory.
Frequently Asked Questions
What does ANSI Z358.1-2014 compliance mean for an eyewash station?
ANSI Z358.1-2014 establishes minimum performance requirements for eyewash flow rate, stream height, hands-free operation, and equipment accessibility. A plumbed eyewash station meeting this standard must deliver flushing fluid to both eyes simultaneously at a minimum of 0.4 gallons per minute for 15 continuous minutes, activate from off to full flow in one second or less, remain operational without the operator holding the valve, and be installed within 10 seconds of normal walking pace — approximately 55 feet — of the chemical hazard. OSHA 29 CFR 1910.151(c) requires that facilities where employees may be exposed to injurious corrosive materials provide suitable flushing facilities; ANSI Z358.1-2014 is the recognized compliance standard for meeting that requirement.
Why choose a pedestal-mounted eyewash over a wall-mounted unit?
Pedestal mounting is the right choice when the eyewash must be positioned in an open workspace area rather than along a wall — mid-aisle in a laboratory, at a freestanding workbench, or in the center of a production floor. Pedestal units allow positioning precisely within the required 10-second travel distance from the chemical hazard regardless of where that hazard falls relative to room walls. Wall-mounted units (model 708381) are appropriate when the hazard is adjacent to a structural wall and a lower-profile installation is preferred.
What maintenance does the Global Industrial 708382 eyewash station require?
ANSI Z358.1-2014 recommends activating plumbed eyewash stations weekly to flush sediment and verify both spray heads flow properly. Annual inspection verifies flow rate, spray pattern height, and equipment condition. Monthly inspection confirms spray head covers are intact. The inlet and outlet tee design allows connection to a drain line for waste water containment during weekly testing — important in facilities where flushing water must be controlled.

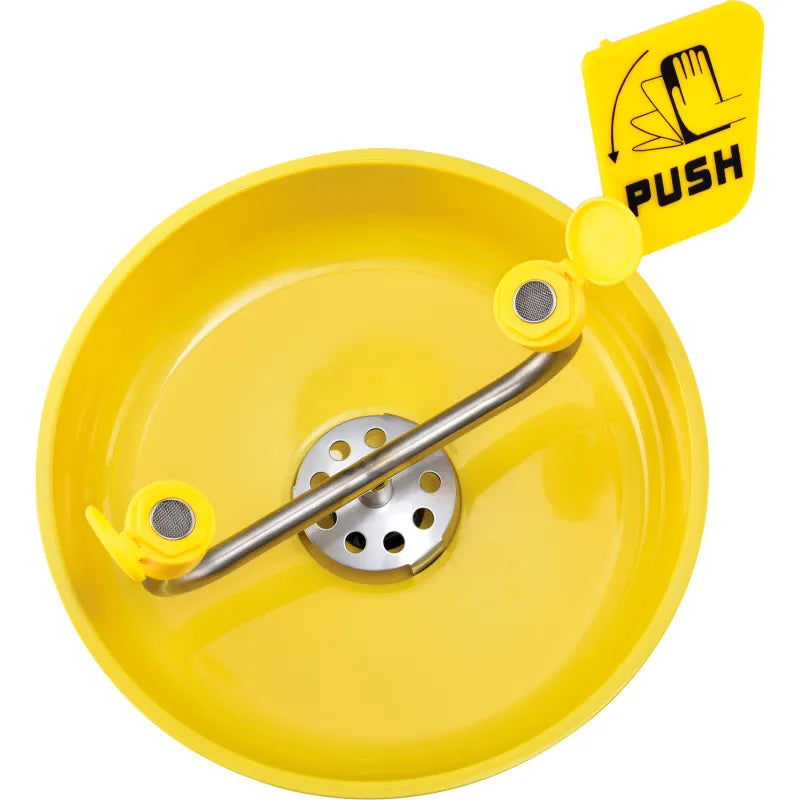

What is the purpose of the flip-top covers on the spray heads?
ANSI Z358.1-2014 requires eyewash nozzles be protected from airborne contaminants that could contaminate flushing water and cause additional injury during an emergency. Flip-top covers seal both spray heads when not in use. When the push-handle activates water flow, the covers open automatically — the ANSI standard specifically requires that nozzle protection removal not require a separate motion when the unit is activated, so the worker can go directly from push to flush without additional steps.
Global Industrial Emergency Safety Equipment Line
Global Industrial emergency eyewash and safety shower line at LabSupplies.com covers four configurations: wall-mounted eyewash (708381), pedestal-mounted eyewash (708382), portable gravity-fed eyewash (708606), and emergency combination shower with eyewash (708383). All meet ANSI Z358.1-2014 and ship ready for installation.
