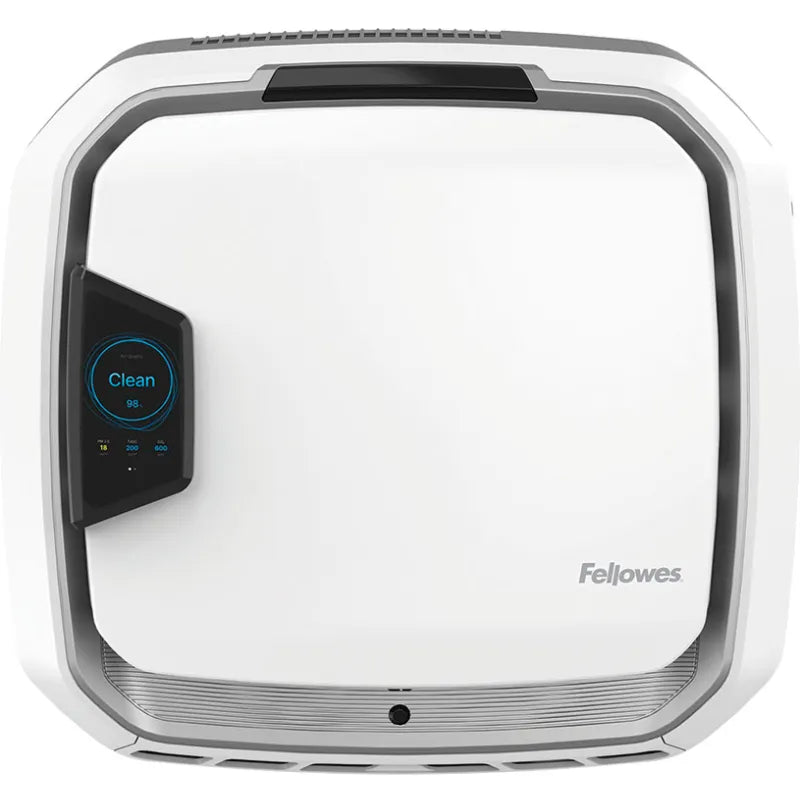

Fellowes Array AW1 Wall Mount Commercial Air Purifier, 240 CFM H13 True HEPA, 120V White
Fellowes Array AW1 Wall Mount Commercial Air Purifier, 240 CFM H13 True HEPA, 120V White
Couldn't load pickup availability
Wall Mount Air Purifier Features
Engineered for offices, healthcare waiting rooms, lobbies, and shared commercial spaces, the Fellowes Array AW1 is a hardwired wall mount air purifier with H13 True HEPA filtration rated 99.95% efficient at 0.1 microns. Five-speed operation delivers up to 240 CFM through a 3-stage system combining a pre-filter, activated carbon layer, and H13 True HEPA filter, covering 600 square feet at standard commercial air-exchange rates. Nine onboard EnviroSmart+ sensors continuously monitor TVOCs, fine particulates, CO², temperature, humidity, pressure, and occupancy, automatically adjusting fan speed to match actual conditions.
For facilities teams managing enterprise-scale indoor air quality, the Array AW1 connects directly to Building Management Systems via BACnet/IP, enabling centralized air quality dashboards, direct fan control from existing BMS software, and sensor data outputs for LEED, WELL, and Fitwel certification documentation. An integrated Lookout display shows real-time air quality status to occupants, and hardwired 120V installation keeps the wall-mount profile unobtrusive with zero floor footprint.
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Fellowes |
| Series | Array |
| Manufacturer Part # | 5884801 |
| Airflow | 240 CFM (5-speed: 68 / 110 / 240 CFM) |
| Coverage | 600 sq ft at standard commercial ACH (manufacturer-rated); up to 1,800 sq ft at 1 ACH |
| Filtration | 3-stage: pre-filter + activated carbon + H13 True HEPA |
| HEPA Efficiency | 99.95% at 0.1 microns |
| Smart Sensors | EnviroSmart+: TVOCs, PM2.5, PM10, CO², temperature, humidity, pressure, occupancy |
| Display | Integrated Lookout display with real-time air quality status |
| BMS Integration | BACnet/IP — LEED, WELL, and Fitwel data support |
| Fan Speeds | 5-speed with auto, quiet, and manual modes |
| Power | 120V AC / 60Hz / 0.9A / hardwired |
| Sound Level | 64 dBA |
| Dimensions | 19.6"L × 9.7"W × 20.9"H |
| Weight | 20 lbs |
| Housing | ABS plastic, White |
| Certifications | UL |
| Warranty | 72-month parts warranty |
Commercial and Institutional Applications
To maintain infection-control and IAQ standards in shared commercial spaces, the Array AW1 is deployed in medical offices, dental waiting rooms, outpatient clinics, hospital administrative areas, corporate conference rooms, and educational classrooms — anywhere floor space is limited and a hardwired wall-mount installation is preferable to a floor-standing unit. BACnet/IP connectivity makes it the right choice for enterprise facilities programs that must document air quality data for LEED, WELL, or Fitwel certification.
Wall Mount Air Purifier Comparison: Why Choose Fellowes Array?
| Feature | Fellowes Array AW1 | Typical Commercial Purifier |
|---|---|---|
| Filtration | H13 True HEPA + carbon + pre-filter | HEPA varies, often H11-H12 |
| HEPA Efficiency | 99.95% at 0.1 microns | Often 99.97% at 0.3 microns only |
| Smart Sensors | 9 data points (VOCs, CO₂, PM, temp, humidity, occupancy) | Basic PM or no sensors |
| Mounting | Hardwired wall mount (saves floor space) | Floor unit or plug-in only |
| BMS Integration | BACnet/IP native | No BMS integration |
| Certifications | UL, LEED/WELL/Fitwel data support | Often none |
| Warranty | 72-month parts | 12-36 months typical |
| Pricing | Below retail pricing | Full retail |
Academic and Institutional Pricing
LabSupplies.com offers tiered quantity pricing for academic and research institutions. As an authorized dealer, we ship directly from USA inventory.
Frequently Asked Questions
What is the difference between the Fellowes Array AW1 and AW2?
The AW1 and AW2 are wall-mounted units in the Fellowes Array lineup sharing the same H13 True HEPA filtration, EnviroSmart+ sensor suite, BACnet/IP BMS integration, and installation approach. Coverage is the key difference: at 240 CFM, the AW1 covers 600 square feet at standard commercial air exchange rates. Higher-airflow AW2 covers 1,000 square feet, making it the right choice for medium-sized conference rooms, lobbies, and waiting areas where the AW1 would require multiple units.
Does the Fellowes Array AW1 require hardwiring?
Yes. The Array AW1 is a hardwired unit operating at 120V / 0.9A / 60Hz and does not include a power cord for plug-in operation. Installation requires a licensed electrician to connect the unit to a dedicated circuit at the wall mounting location. This hardwired design is standard for commercial wall-mount air purifiers and supports the unobtrusive, permanent installation intended for offices, lobbies, healthcare waiting rooms, and other shared commercial spaces.
What does EnviroSmart+ monitor in the Array AW1?
The Array AW1's EnviroSmart+ sensor suite continuously monitors nine data points: total volatile organic compounds (TVOCs), fine particulates (PM2.5 and PM10), carbon dioxide (CO2), temperature, relative humidity, atmospheric pressure, and room occupancy. The unit uses this data to automatically adjust fan speed in real time, cleaning the air more aggressively when occupancy or pollutant levels rise and entering a quiet low-power mode when conditions allow.
Can the Array AW1 integrate with a building management system?
Yes. The Array AW1 supports BACnet/IP connectivity, allowing direct integration with most enterprise building management systems. Facilities teams can monitor air quality data from the unit through their existing BMS dashboard and issue direct control commands to Array units. Sensor data for TVOCs, PM2.5, PM10, CO2, temperature, humidity, pressure, and occupancy also supports LEED, WELL, and Fitwel certification documentation requirements.
Array Ecosystem and Replacement Filters
The Fellowes Array AW1 is part of the broader Array networked IAQ platform. Ecosystem additions include the Array AW2 (wall unit, 1,000 sq ft), Array AS1 and AS2 floor-stand variants, Array Signal remote air quality monitors, and Array Lookout displays for high-visibility spaces. Replacement filters use the AeraMax Pro AM3/AM4 Hybrid 2-inch filter (Fellowes part 9436902); EnviroSmart+ extends filter life by adapting fan speed to actual occupancy and air quality readings.
