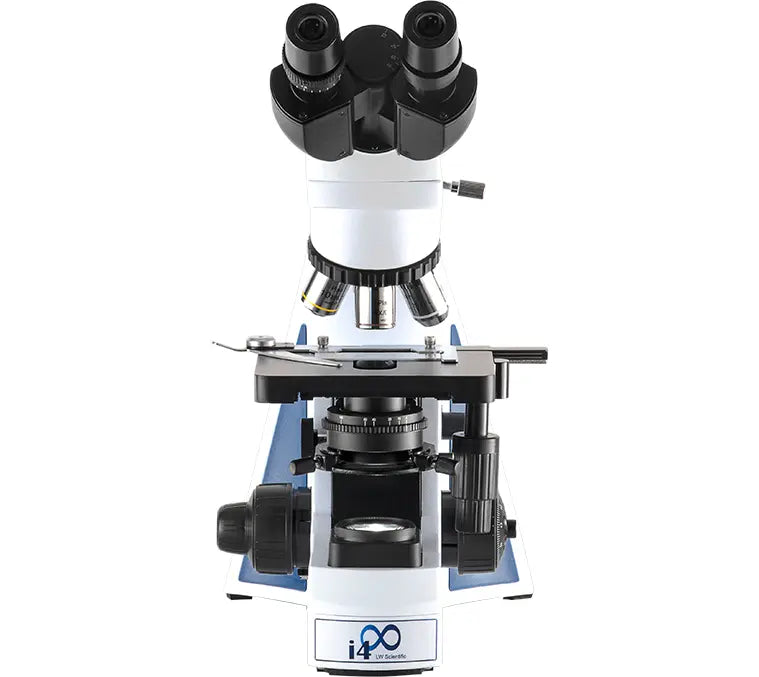

LW Scientific i4 Infinity Binocular Laboratory Microscope - LED, 4 Plan Objectives, 40X-1000X, i4M-BN4A-iPL3

The LW Scientific i4 Infinity binocular laboratory microscope (i4M-BN4A-iPL3) delivers exceptional optical performance for clinical and research applications. This professional-grade binocular laboratory microscope features infinity-corrected plan optics with superior imaging quality.

Professional Binocular Laboratory Microscope Features

The i4 Infinity microscope includes four infinity plan objectives (4X, 10X, 40XR, 100XR oil) providing 40X to 1000X magnification. LED "daylight" illumination ensures consistent, cool lighting with extended bulb life. The Siedentopf binocular head rotates 360° with adjustable interpupillary distance (48-75mm) for comfortable viewing.

Advanced Optical System

Infinity-corrected optics eliminate spherical aberration and deliver flat-field imaging. The 30-year anti-fungal lens coating protects all optical elements. This binocular laboratory microscope features a 1.25 NA Abbe condenser with iris diaphragm for optimal contrast and resolution.

Ergonomic Design & Precision Controls

The mechanical stage (133mm x 143mm) provides coaxial X/Y controls with 78mm x 50mm travel range. Coarse focus adjustment offers 15mm range while fine focus provides 2μm graduation. The rotating head adjusts height for taller users, ensuring ergonomic comfort during extended use.

Clinical & Research Applications

Ideal for:

• Hematology and cytology analysis

• Microbiology specimen examination

• Pathology and histology studies

• Veterinary diagnostics

• University research laboratories

• Clinical laboratory settings

Specifications

Optical System: Infinity-corrected
Head Type: Binocular Siedentopf
Objectives: 4X, 10X, 40XR, 100XR (oil)
Eyepieces: WF10X/18mm
Magnification: 40X-1000X
Illumination: LED variable intensity
Stage: Mechanical, 133mm x 143mm
Condenser: Abbe NA 1.25
Dimensions: 6.1"W x 10.7"L x 14.1"H
Weight: 16 lbs

Included Accessories

Each binocular laboratory microscope includes dust cover, immersion oil, colored filters, spare fuse, and power cord (100-240V, 50-60Hz). The i4 Infinity microscope is backed by a 1-year electronics warranty and lifetime optics warranty.

Why Choose the i4 Infinity?

This binocular laboratory microscope combines professional-grade optics with exceptional value. The modular design allows future upgrades including phase contrast, darkfield, and digital camera attachments. Energy-efficient LED technology reduces operating costs while providing superior illumination.

Order your LW Scientific i4 Infinity microscope today for reliable laboratory performance.
