Ideal Warehouse Innovations

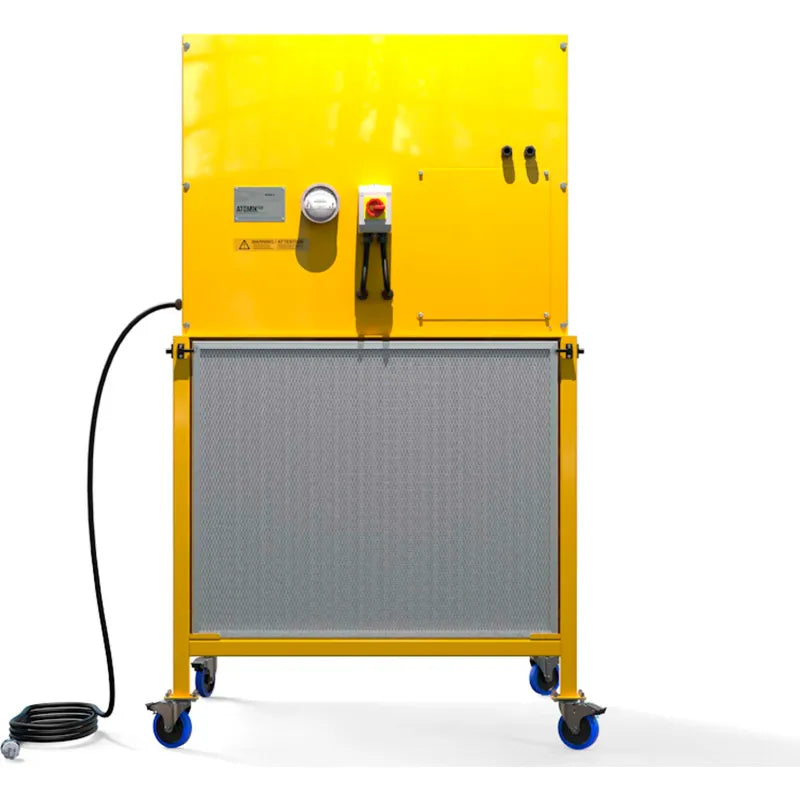

Ideal Warehouse AtomikAir 60-8202 575V Industrial Air Filtration, 1M CFH (40,000 sq ft, with Filters)
Ideal Warehouse AtomikAir 60-8202 575V Industrial Air Filtration, 1M CFH (40,000 sq ft, with Filters)
Couldn't load pickup availability
Industrial Air Filtration System Features
Engineered for industrial facilities operating 575V 3-phase electrical distribution, the Ideal Warehouse Innovations AtomikAir 60-8202 is a commercial-grade industrial air filtration system processing one million cubic feet of air per hour. Identical in filtration, throughput, and mechanical design to the 60-8200 (240V) and 60-8201 (480V), the 60-8202 brings the AtomikAir platform to facilities with 575V service — common in Canadian industrial environments and select high-voltage US installations. Five included MERV 13 washable filters capture particles, allergens, and pollutants down to 0.3 microns, and the unit is EPA-registered as a pesticide device for reducing transmission of bacteria, viruses, and mold.
For facilities managers running 575V distribution, the 60-8202 eliminates the step-down transformer cost and complexity that would otherwise be required to run 240V or 480V equipment from a 575V panel. Drawing only 4.8 amps, it adds minimal load to existing electrical infrastructure. Washable MERV 13 filters reduce recurring consumable cost compared to disposable systems, and the unit's powerful destratification effect reduces winter heating costs by 20 to 40 percent by recirculating warm air trapped at ceiling level.
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Ideal Warehouse Innovations |
| Series | AtomikAir |
| Manufacturer Part # | 60-8202 |
| Air Throughput | 1,000,000 cu ft per hour |
| Coverage Area | Up to 40,000 sq ft (25-ft warehouse ceilings) |
| Voltage | 575V |
| Phase / Frequency | 3-Phase / 60Hz |
| Current Draw | 4.8A |
| Motor | 4.2 HP variable speed |

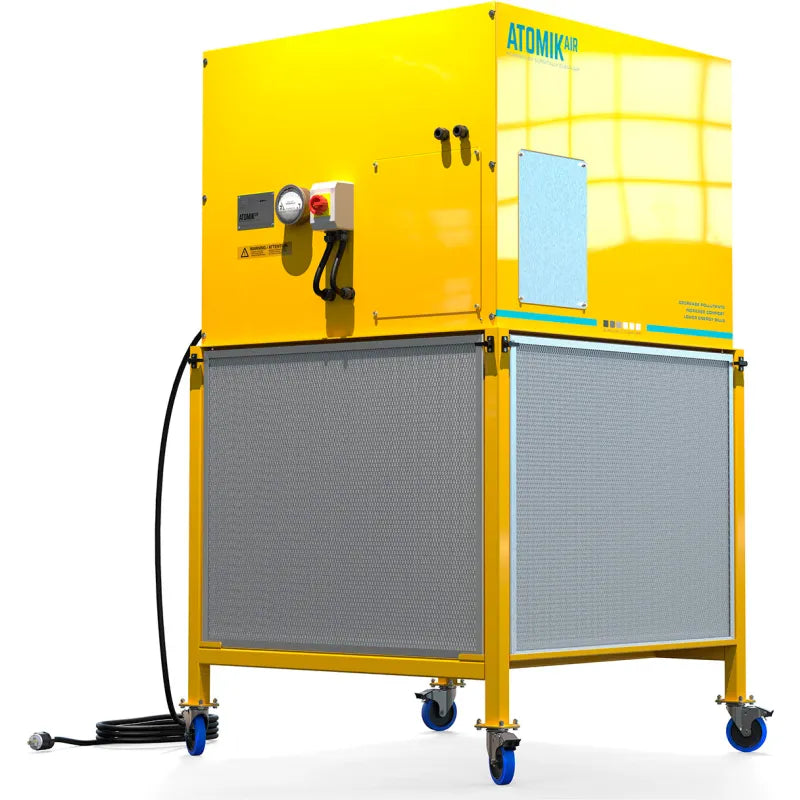

| Filtration | 5× MERV 13 washable / reusable filters (included) |
| Particle Capture | Up to 99% airborne particles down to 0.3 microns |

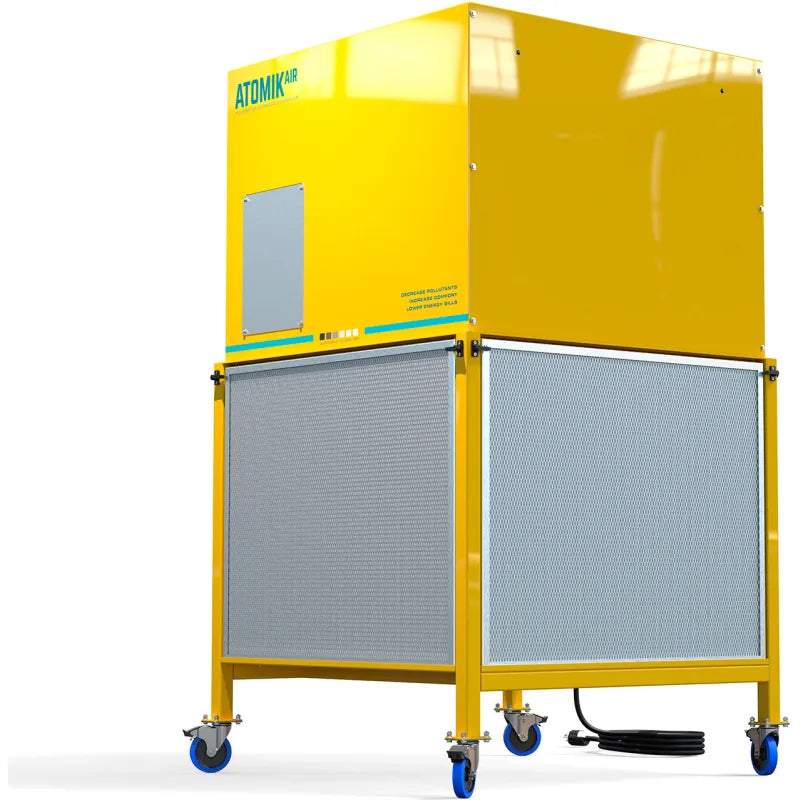

| Frame | Steel |
| Mobility | Lockable casters |
| Sound Level | Office-environment level |
| Filter Life | Approx. 1 year at 24/7; washable and reusable |
| Regulatory | EPA-registered pesticide device for bacteria, viruses, and mold |
| Compatible Accessory | 60-8250 Air Stream Director Hood (sold separately) |
Warehouse and Industrial Applications
To maintain air quality across large-volume industrial spaces with 575V infrastructure, the 60-8202 is deployed in Canadian distribution centers, manufacturing plants, cold-storage facilities, and automotive service operations where 575V service is standard. Its EPA-registered filtration makes it appropriate for environments where infection control, mold management, and worker respiratory health are facility compliance requirements. The unit's lockable casters allow repositioning between facility zones without electrical work.
Industrial Air Filtration Comparison: Why Choose AtomikAir?
| Feature | AtomikAir 60-8202 (575V) | Typical Competitor |
|---|---|---|
| Air Throughput | 1,000,000 cu ft/hr | 50,000–200,000 cu ft/hr |
| Coverage | Up to 40,000 sq ft | Often under 10,000 sq ft |
| Voltage | 575V 3-phase (high-capacity industrial) | Often 120–240V |
| Filtration | MERV 13 washable — included | Disposable, sold separately |
| Heating Savings | 20–40% via destratification | None |
| EPA Registration | Pesticide device | Often uncertified |
| Pricing | Below retail pricing | Full retail |
Academic and Institutional Pricing
LabSupplies.com offers tiered quantity pricing for academic and research institutions. As an authorized dealer, we ship directly from USA inventory.
Frequently Asked Questions
What is the difference between the AtomikAir 60-8202 and 60-8201?
The 60-8202 and 60-8201 are mechanically identical — same throughput, coverage, MERV 13 filtration, steel cabinet, and lockable casters. Voltage is the only difference: the 60-8202 operates on 575V 3-phase service drawing 4.8 amps, while the 60-8201 runs on 480V 3-phase at the same amperage. The 575V configuration is common in Canadian industrial facilities and select US facilities with high-voltage distribution infrastructure.
What size warehouse does the AtomikAir 60-8202 cover?
A single 60-8202 maintains air quality for up to 40,000 square feet at typical 25-foot warehouse ceiling heights. For spaces exceeding 40,000 square feet, multiple units can be deployed. All three AtomikAir voltage variants (60-8200, 60-8201, 60-8202) share the same 1,000,000 cubic foot per hour throughput, so coverage calculations are identical across all three.
Is the 60-8202 compatible with the Air Stream Director Hood?
Yes. The optional 60-8250 Air Stream Director Hood attaches to the top-discharge port of the 60-8202 and redirects vertical airflow horizontally, creating a cooling ground-level breeze in warmer months. All three AtomikAir voltage variants share the same top-discharge design and are fully compatible with the 60-8250 hood.
How do the washable MERV 13 filters work in the AtomikAir system?
The 60-8202 includes five MERV 13 filters rated for approximately one year of continuous 24/7 operation. When filter service is due, the filters are removed, washed with a garden hose, allowed to dry, and reinstalled — eliminating the recurring cost of disposable filter replacement. Replacement filter SKU 60-8280 is available for annual service cycles. The EPA has registered the AtomikAir and its MERV 13 filters as a pesticide device, confirming effectiveness at reducing transmission of bacteria, viruses, and mold.
Accessories and Voltage Variants
The 60-8202 accepts the optional 60-8250 Air Stream Director Hood for horizontal airflow redirection in summer. Replacement MERV 13 filters ship under SKU 60-8280. For facilities requiring 240V service, the 60-8200 provides identical performance; the 60-8201 serves 480V installations. All three voltage variants share the same hood compatibility, filter SKU, and 40,000-square-foot coverage specification.
