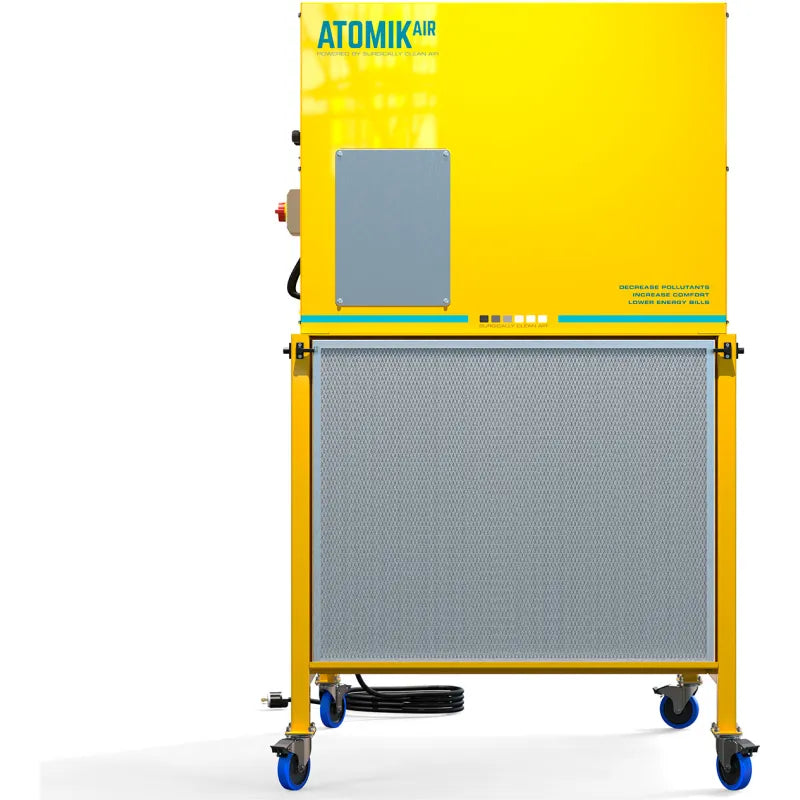

Ideal Warehouse AtomikAir 60-8200 High-Capacity Industrial Air Filtration, 240V 3-Phase, 1M CFH (40,000 sq ft, with Filters)
Ideal Warehouse AtomikAir 60-8200 High-Capacity Industrial Air Filtration, 240V 3-Phase, 1M CFH (40,000 sq ft, with Filters)
Couldn't load pickup availability
Industrial Air Filtration System Features
Engineered for warehouses, light manufacturing facilities, distribution centers, and large-volume commercial spaces, the Ideal Warehouse AtomikAir 60-8200 is a commercial-grade industrial air filtration system that processes one million cubic feet of air per hour. A single unit maintains air quality for spaces up to 40,000 square feet at typical 25-foot warehouse ceilings, capturing suspended particles, allergens, and pollutants down to 0.3 microns through five high-capacity MERV 13 filters. The unit is EPA-registered as a pesticide device for reducing transmission of bacteria, viruses, and mold.
For facility managers balancing air quality against operating cost, the AtomikAir's destratification effect circulates warmer air from ceiling level back to ground level, reducing heating costs by 20 to 40 percent while making work areas more comfortable year-round. Variable-speed 4.2 HP operation draws only 9.4 amps from a 240V 3-phase service, and the MERV 13 filters are washable and reusable, eliminating the recurring expense of disposable filter replacement.
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Ideal Warehouse Innovations |
| Series | AtomikAir |
| Manufacturer Part # | 60-8200 |
| Air Throughput | 1,000,000 cubic feet per hour |
| Coverage Area | Up to 40,000 sq ft (with typical 25-ft ceilings) |
| Voltage | 240V |
| Phase / Frequency | 3-Phase / 60Hz |
| Current Draw | 9.4A |
| Motor | 4.2 HP variable speed |
| Filtration | 5x MERV 13 washable / reusable filters (sold separately, SKU 60-8280) |
| Particle Capture | Up to 99% airborne particles down to 0.3 microns |
| Frame | Steel |
| Mobility | Lockable casters |
| Sound Level | Office-environment level |
| Filter Life | Approximately 1 year at 24/7 operation; washable and reusable |
| Regulatory | EPA-registered as a pesticide device for reducing transmission of bacteria, viruses, and mold |
| Warranty | Manufacturer warranty (verify per order) |
Warehouse and Industrial Applications
To control air quality in large-volume environments, the AtomikAir 60-8200 is widely deployed in distribution centers, light manufacturing plants, automotive service shops, and refrigerated warehouses. In refrigerated applications, the unit captures produce-spoiling mold and increases shelf-life. Manufacturing facilities use it to remove dust, exhaust, and airborne pollution that would otherwise settle on machinery and finished goods. Schools, gymnasiums, and large public spaces deploy it for occupant air quality and infection-control support.
Industrial Air Filtration Comparison: Why Choose AtomikAir?
| Feature | This Product | Typical Competitor |
|---|---|---|
| Air Throughput | 1,000,000 cu ft/hr | Typically 50,000-200,000 cu ft/hr |
| Coverage | Up to 40,000 sq ft | Often under 10,000 sq ft |
| Filtration | MERV 13 washable | MERV 8-11 disposable |
| Reusable Filters | Yes (washable, reusable) | Disposable |
| Energy Efficiency | 9.4A draw at 240V | Higher draw typical |
| Heating Savings | 20-40% reduction via destratification | None |
| Sound Level | Office level | Industrial fan noise |
| Pricing | Below retail pricing | Full retail |
Academic and Institutional Pricing
LabSupplies.com offers tiered quantity pricing for academic and research institutions. As an authorized dealer, we ship directly from USA inventory.
Frequently Asked Questions
What size warehouse can the AtomikAir 60-8200 cover?
A single AtomikAir 60-8200 maintains air quality for up to 40,000 square feet, assuming a typical warehouse 25-foot ceiling height. For larger spaces, multiple units can be deployed. The system processes one million cubic feet of air per hour, providing rapid air turnover even in high-volume environments.
What is the difference between the AtomikAir 60-8200, 60-8201, and 60-8202?
All three AtomikAir models share identical filtration, throughput, and coverage specifications. They differ only in voltage configuration: the 60-8200 is rated 240V 3-phase 9.4A, the 60-8201 is rated 480V 3-phase 4.8A, and the 60-8202 is rated 575V 3-phase 4.8A. Voltage selection should match the available 3-phase service at the installation site.
How often do the MERV 13 filters need to be replaced or washed?
Per the manufacturer, the MERV 13 filters need to be replaced approximately once a year when the unit runs continuously 24/7. Because the filters are washable and reusable, they can be hosed down and reinstalled rather than disposed of, providing both economic and environmental benefits over disposable-only filter systems.
Can the AtomikAir help reduce heating and cooling costs?
Yes. The unit's powerful airflow destratifies temperature gradients in large-volume spaces, reducing heating costs by as much as 20-40%. By circulating warmer air from ceiling level back to ground level in winter, and by directing clean cool air into work areas in summer when configured with a deflector, the unit improves working conditions while lowering HVAC load.
Replacement Filters and Voltage Variants
The AtomikAir 60-8200 uses 5 high-capacity MERV 13 washable filters, sold separately under SKU 60-8280 (compatible across the 60-8200, 60-8201, and 60-8202 models). For installations requiring different voltage service, the AtomikAir is available in 480V (SKU 60-8201) and 575V (SKU 60-8202) configurations sharing the same filtration, throughput, and coverage specifications. The MERV 13 filters can be washed with a hose and reinstalled, supporting eco-friendly and cost-effective long-term operation.
