What Is a Laminar Flow Hood and When Do You Need One?
Share
A laminar flow hood is a workstation that creates a particle-free environment by continuously bathing the work surface in HEPA-filtered air moving in a single, unidirectional stream. It protects your work — your samples, cultures, media, or sensitive components — from airborne contamination. What it does not do is protect you. That distinction is the most important thing to understand before you order one, because the most common laminar flow hood mistake in labs is using one for work that requires a biological safety cabinet (BSC) instead. In our experience working with microbiology, cell culture, pharmaceutical, and research labs, a clear understanding of what laminar flow hoods protect against — and what they don’t — prevents both failed experiments and real safety incidents.
How a Laminar Flow Hood Works

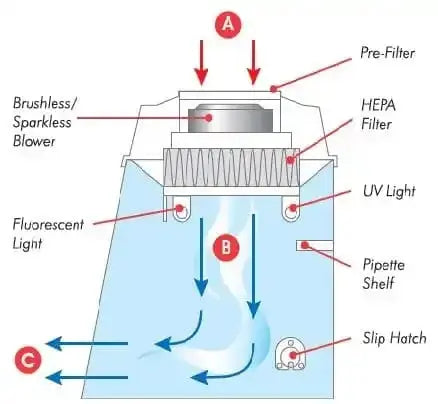

A motor draws room air through a pre-filter (typically G4 or MERV 8 grade) that removes large particles — dust, lint, hair. The pre-filtered air is then forced through a HEPA filter, which removes ≥99.97% of particles ≥0.3 microns. The filtered air exits the HEPA filter and flows across the work surface in a smooth, uniform stream — no turbulence, no eddies, no stagnant pockets where particles can settle.
That unidirectional, particle-free airflow makes the inside of a laminar flow hood functionally equivalent to an ISO 5 (Class 100) cleanroom environment — even when it’s sitting in an ordinary lab. The airflow exits the front of the hood toward the operator. This is a critical detail: the exhaust is directed at the user. That’s acceptable when working with non-hazardous materials. It is categorically not acceptable when working with pathogens, human cell lines, or toxic chemicals.
Laminar Flow Hood vs. Biological Safety Cabinet: The Most Important Distinction
| Feature | Laminar Flow Hood | Biological Safety Cabinet (BSC) |
|---|---|---|
| Protects the work? | Yes — HEPA-filtered air over work surface | Yes |
| Protects the operator? | No — exhaust directed toward user | Yes — inward airflow protects operator |
| Protects the environment? | No — exhaust exits to room | Yes (Class II/III) — exhaust HEPA-filtered |
| Safe for pathogens? | No | Yes (Class II A2, B1, B2) |
| Safe for human cell lines? | No | Yes |
| Safe for toxic chemicals? | No | Class II B2 / Class III only |
| Safe for non-hazardous cultures? | Yes | Yes (overkill, but acceptable) |
| Safe for media prep, IV compounding? | Yes | Yes |
| HEPA-filtered exhaust? | No | Yes |
| Regulatory standard | ISO 14644 / ISO 5 | NSF/ANSI 49 |
| Typical cost | $1,500–$5,000 | $3,000–$15,000+ |
The rule is simple: if there is any risk to the operator from what’s inside the hood — biological, chemical, or radiological — you need a BSC, not a laminar flow hood. The laminar flow hood blows air toward you. A BSC pulls air away from you.
Horizontal vs. Vertical Laminar Flow: Which Direction Matters
Both types achieve the same ISO 5 environment. The difference is the direction HEPA-filtered air travels, and that direction has practical consequences for your specific application.
Horizontal laminar flow hoods:
- Air moves from the back wall (HEPA filter) forward across the work surface toward the operator
- Minimal work surface turbulence — airflow is parallel to the bench surface
- Easier to position sterile items upstream of each other (closer to the filter = cleaner position)
- Better for small items and instruments requiring maximum contamination control
- Not recommended for fine powders — horizontal airflow blows powder toward the operator
Vertical laminar flow hoods:
- Air moves from the top of the unit downward across the work surface
- Better for larger equipment on the work surface
- Required when working with fine powders or bulk particulate materials
- Larger work envelope possible; slightly more turbulence around objects compared to horizontal
| Scenario | Recommended Flow Direction |
|---|---|
| Culture media prep, petri plate work, small instruments | Horizontal |
| IV compounding with small vials and syringes | Horizontal |
| Fine powder handling, bulk particulate work | Vertical |
| Large equipment on work surface | Vertical |
| Mushroom / mycology inoculation work | Horizontal |
| Semiconductor / electronics assembly | Horizontal or vertical depending on setup |
| General sterile pharmaceutical compounding | Vertical preferred per USP 797 |
When You Actually Need a Laminar Flow Hood
A laminar flow hood is the right tool when your samples are sensitive to airborne contamination and your materials present no hazard to the operator.
- Microbiology and cell culture (non-hazardous organisms) — Preparing culture media, pouring plates, inoculating agar, and working with non-pathogenic microorganisms (BSL-1 organisms, food-grade fermentation cultures, non-human-derived cell lines). Any BSL-2 or higher organism requires a BSC.
- Pharmaceutical and IV compounding — Non-hazardous sterile compounding. USP Chapter 797 requires ISO 5 for critical work; a horizontal laminar flow hood meets this for non-hazardous preparations. Cytotoxic drug compounding requires a Class II Type B2 BSC.
- Mycology and mushroom cultivation — Inoculating grain jars, agar work, spore transfers, fruiting body cultures. Eliminates the airborne contamination that makes open-bench mycology unreliable.
- Electronics and semiconductor assembly — Chip assembly, PCB inspection, optical component handling where particulate contamination causes functional failure.
- Research sample prep — PCR setup, protein crystallization, tissue culture media prep, and non-hazardous preparations where ambient airborne contamination would compromise results.
When a Laminar Flow Hood Is the Wrong Tool
A laminar flow hood must not be used for:
- BSL-2 or higher biological work — human cell lines, primary cells, any potentially pathogenic organism. Use a Class II A2 BSC.
- Any pathogenic microorganism — bacteria, fungi, or viruses with potential for human infection. Use a BSC.
- Cytotoxic or chemotherapy drug preparation — requires Class II Type B2 BSC with 100% external exhaust.
- Volatile or toxic chemicals — no exhaust capture. Use a chemical fume hood.
- Radioactive materials — requires dedicated radiological safety cabinet.
HEPA Filter Performance and Maintenance
HEPA vs. ULPA:
HEPA filters remove ≥99.97% of particles ≥0.3 microns — standard for biological and pharmaceutical work. ULPA filters remove ≥99.9995% of particles ≥0.12 microns — required for semiconductor applications. For biological and pharmaceutical work, HEPA is the correct specification.
Filter certification and testing:
HEPA filters should be integrity-tested using DOP/PAO aerosol challenge testing at installation and annually thereafter. A visually intact filter can still fail DOP testing — certification requires an actual particle challenge.
Pre-filter maintenance:
Inspect pre-filters monthly and replace when pressure drop increases by more than 20% above baseline. Most pre-filters cost $5–$20 and take 5 minutes to replace. Neglecting them shortens HEPA filter life and reduces face velocity.
UV decontamination:
UV lamps decontaminate work surfaces but have no effect on airborne particles. Replace UV lamps annually regardless of apparent function. Always turn off the UV lamp and wait a minimum of 15 minutes before working in the hood — UV exposure causes corneal burns and skin damage.
Siting and Setup Requirements
- Avoid high-traffic areas — foot traffic generates room air turbulence that disrupts the clean air curtain at the hood opening
- No nearby HVAC vents — maintain minimum 12 inches of clearance from any supply or return air vent
- Purge before use — run the hood for a minimum of 15–30 minutes before beginning work to establish stable laminar flow
- Work 6 inches inside the hood opening — the transition zone at the sash is where room air and filtered air mix; move inward for full ISO 5 protection
- Never block the filter face — objects placed against the back wall (horizontal) or top panel (vertical) disrupt uniform exit velocity and create turbulent wakes
As an authorized dealer for LW Scientific and Across International, we work directly with their engineering teams and can help you spec the right laminar flow hood for your application. Reach out at support@labsupplies.com.
Browse our full laminar flow hoods collection to compare horizontal, vertical, and benchtop models →
Laminar Flow Hood Sizing: What Work Surface Do You Need?
| Hood Width | Practical Work Envelope | Best For |
|---|---|---|
| 24 inches (2 ft) | 1 operator, small items only | Mycology, small sample prep, tight spaces |
| 36 inches (3 ft) | 1 operator comfortable work | Most general lab use, media prep, culture work |
| 48 inches (4 ft) | 1 operator full range of motion | IV compounding, larger instrument setups |
| 72 inches (6 ft) | 2 operators or large equipment | Pharmaceutical production, semiconductor |
Size up rather than down — crowding the work surface introduces turbulence and increases contamination risk. See the new lab setup guide for laminar flow hood placement within a full lab design workflow, and the lab storage and safety guide for how hood placement interacts with chemical storage and ventilation requirements.
Frequently Asked Questions
What is the difference between a laminar flow hood and a fume hood?
A laminar flow hood protects your work by bathing the work surface in HEPA-filtered air directed toward the operator. A fume hood protects the operator by maintaining negative pressure and exhausting contaminated air away from the work area. They protect in opposite directions. Never use a laminar flow hood when working with toxic chemicals, pathogens, or anything hazardous — use a fume hood or biological safety cabinet instead.
Can I use a laminar flow hood for BSL-2 work?
No. BSL-2 work requires a Class II Type A2 biological safety cabinet certified to NSF/ANSI 49. A laminar flow hood exhausts air toward the operator, providing zero protection from biological aerosols generated during pipetting, vortexing, or centrifugation. Using a laminar flow hood for BSL-2 work is a biosafety violation.
How often does a laminar flow hood HEPA filter need to be replaced?
HEPA filters typically last 3–5 years under normal use, but replacement is performance-driven rather than calendar-driven. Annual DOP/PAO integrity testing determines actual filter condition. Pre-filters should be inspected monthly and replaced as needed. UV germicidal lamps should be replaced annually. Increased motor noise or reduced face velocity below 90–100 ft/min is a sign the HEPA filter is approaching end of service life.
How long should I run the laminar flow hood before using it?
Run the hood for a minimum of 15–30 minutes before beginning work. This purge period establishes stable laminar airflow throughout the work zone and flushes settled particles from the work surface. For hoods idle overnight or over a weekend, 30 minutes is the appropriate minimum. Never start work immediately after switching on the hood.
Does a laminar flow hood replace a cleanroom?
For many applications, yes — a laminar flow hood creates an ISO 5 (Class 100) environment at the work surface even in a standard lab. For work requiring ISO 5 throughout an entire room rather than a single work zone, a dedicated cleanroom is required. Most pharmaceutical compounding, cell culture, and research applications that specify ISO 5 at the critical work surface are fully served by a properly maintained laminar flow hood.
