Vacuum Filtration Systems: Setup, Troubleshooting & Selection
Share
At LabSupplies.com, vacuum filtration is one of the most workflow-critical categories in the lab — and one of the most common sources of preventable failure. A vacuum filtration system that uses the wrong membrane material loses the sample to chemical incompatibility. A system running at insufficient vacuum produces slow, incomplete filtration that wastes hours of bench time. A setup without a vacuum trap risks contaminating the house vacuum line or damaging an expensive pump. This guide covers every decision in vacuum filtration system selection and operation: membrane material and pore size, funnel and flask selection, vacuum source requirements, setup protocol, and a structured troubleshooting framework for the most common failure modes.
How a Vacuum Filtration System Works
A laboratory vacuum filtration system creates a pressure differential across a filter membrane that pulls liquid through the membrane and into a collection vessel below. The basic system consists of five components working together: a filter funnel (which holds the membrane and the liquid sample), a filter flask (which collects the filtrate and connects to the vacuum source), a filter membrane (which performs the actual separation), a vacuum trap (which protects the vacuum source from liquid back-surge), and a vacuum source (pump, aspirator, or house vacuum).
The driving force is the pressure difference between atmospheric pressure above the membrane and the reduced pressure below it. Greater vacuum depth increases the pressure differential and therefore the flow rate through the membrane — up to the point where the membrane itself or the sample viscosity becomes the limiting factor. Understanding this relationship is essential for diagnosing slow flow and selecting the right vacuum source for each application.
System Components: Selection Guide
Filter Funnels
The filter funnel sits on top of the filter flask and holds the membrane in place. Funnel selection depends on sample volume, membrane diameter, and chemical compatibility.
- Buchner funnels — porcelain or polypropylene flat-bottom funnels with a perforated plate; used with filter paper or membrane discs; the standard format for general vacuum filtration, solids collection, and HPLC solvent filtration
- Fritted glass funnels — borosilicate glass funnels with an integrated sintered glass frit that supports the membrane; used for analytical filtration requiring glass contact surfaces and chemical resistance
- Plastic filter funnels (PP or PES) — lightweight, break-resistant; correct for general aqueous filtration and biological sample processing; not suitable for aggressive solvents

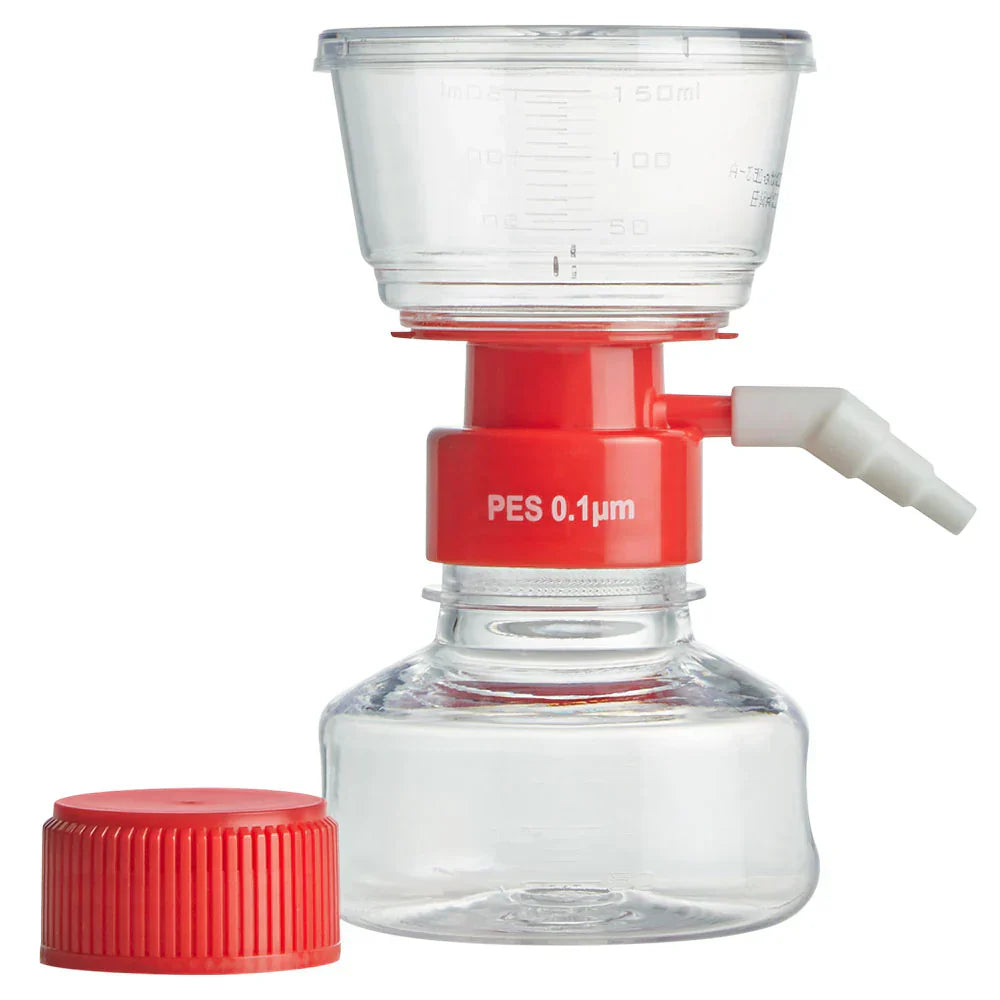

- Sterile disposable filter units — pre-assembled membrane + funnel + flask units; used for cell culture media, serum, and biological buffers where sterility and convenience both matter; available in 150 mL, 250 mL, 500 mL, and 1 L formats
Filter Flasks (Kitasato / Side-Arm Flasks)
The filter flask — also called a Kitasato flask or vacuum flask — is a thick-walled Erlenmeyer flask with a side-arm port for vacuum connection. The thick walls are engineered to withstand the pressure differential of vacuum operation; standard thin-walled Erlenmeyer flasks must never be used as vacuum filtration receivers because they can implode under vacuum. Borosilicate glass filter flasks are appropriate for most chemical filtration applications. Polypropylene filter flasks are available for chemical environments that require plastic contact surfaces.
Flask volume should be selected to hold at least 1.5× the expected filtrate volume to prevent overflow into the vacuum line. For large-volume filtration runs, use two flasks in series with a vacuum trap between them.
Vacuum Traps
A vacuum trap is a non-negotiable component of any vacuum filtration setup involving liquids. Placed in the vacuum line between the filter flask side-arm and the vacuum source, the trap intercepts any liquid that is pulled past the flask side-arm and prevents it from reaching the vacuum pump or house vacuum system. Glass vacuum traps (borosilicate) are chemically resistant and visually monitorable. Polypropylene traps are available for non-solvent aqueous applications. The trap should be emptied before it reaches 50% full — a full trap provides no protection.
Filter Membrane Selection
Membrane selection is the most consequential decision in vacuum filtration system setup. The membrane material must be chemically compatible with the sample, and the pore size must match the separation requirement. Using the wrong membrane material introduces extractables into the filtrate, causes premature clogging, or leads to complete membrane failure.
| Membrane Material | Protein Binding | Aqueous | Solvents | Best Applications |
|---|---|---|---|---|
| Cellulose Acetate (CA) | Very low | Yes | Limited | Cell culture media, serum, biological buffers, aqueous protein solutions |
| PVDF (Polyvinylidene fluoride) | Low | Yes | Moderate | General lab filtration, protein solutions, aqueous and mild solvent applications |
| PES (Polyethersulfone) | Very low | Yes | Limited | Cell culture, biologics, high-throughput aqueous filtration; fastest flow rate |
| Nylon | Moderate | Yes | Good | HPLC mobile phase preparation, aqueous and many organic solvents |
| PTFE (hydrophobic) | Very low | Requires pre-wetting | Excellent | Aggressive solvents, strong acids, oxidizers; vent filtration |
| Hydrophilic PTFE | Very low | Yes | Excellent | Broad chemical compatibility across aqueous and solvent applications |
| MCE (Mixed Cellulose Ester) | Moderate | Yes | Limited | Particle collection, environmental monitoring, water analysis; not for solvents |
| Glass Fiber (GF) | High | Yes | Good | Pre-filtration of heavily loaded samples; removes large particles before membrane |
Pore Size Selection
Pore size determines what the membrane retains and what passes through. For most lab applications, the choice is between three primary pore sizes:
| Pore Size | What It Removes | Primary Applications |
|---|---|---|
| 0.1 µm | Bacteria, most mycoplasma, larger viruses | Mycoplasma removal from cell culture media; highest-stringency sterile filtration |
| 0.2 µm | Bacteria and most microorganisms | Sterile filtration of cell culture media, buffers, serum, and pharmaceutical solutions — the standard sterilizing grade |
| 0.45 µm | Particles, yeast, some bacteria | HPLC mobile phase clarification, particle removal, pre-filtration; does not achieve sterility |
| 1.0–8.0 µm | Coarse particles, precipitates, cell debris | Pre-filtration before membrane filtration; environmental particle collection; cell harvesting |
The sterilizing grade rule: Only a 0.2 µm membrane is recognized as a sterilizing grade filter under FDA guidance for pharmaceutical and biological applications. A 0.45 µm membrane used on cell culture media does not produce a sterile filtrate. This is one of the most common and consequential errors in cell culture lab practice.
Vacuum Source Selection
The vacuum source determines flow rate, achievable vacuum depth, and running cost. Three vacuum source types are used in laboratory vacuum filtration:
Diaphragm vacuum pumps:
Oil-free diaphragm pumps are the standard dedicated vacuum source for filtration benches. They achieve vacuum levels of 50–100 mbar, which is sufficient for membrane filtration of aqueous solutions and most biological reagents. Diaphragm pumps are clean, low-maintenance, and safe for use with aqueous and mildly corrosive samples when chemically resistant pump heads are specified. They are the correct choice for sterile filtration workstations, cell culture labs, and any application requiring reliable, consistent vacuum independent of house vacuum system pressure fluctuations.
House vacuum / central vacuum systems:
Many labs connect vacuum filtration setups to the building’s central vacuum system via bench outlets. House vacuum is convenient and requires no pump maintenance, but the vacuum level and consistency are shared across all connected users — a simultaneous demand spike from elsewhere in the building reduces vacuum at the bench mid-filtration. House vacuum is appropriate for routine filtration of aqueous samples. A vacuum trap and a vacuum gauge in the line are required; without a gauge, the operator has no visibility into available vacuum level.
Water aspirators (Venturi pumps):
Water aspirators use flowing tap water to generate vacuum via the Venturi effect. They are simple, inexpensive, and require no electricity, but they have two significant limitations: the achievable vacuum level depends on water temperature and line pressure (typically only 20–80 mbar), and they discharge the filtered water — potentially containing chemical vapors from the sample — directly to drain. Water aspirators are not appropriate for volatile organic solvent filtration because solvent vapors pulled into the water stream create a chemical drain hazard.
Standard Vacuum Filtration Setup Protocol
- Select and inspect all components — verify membrane material and pore size; confirm flask and funnel are free of cracks; confirm vacuum trap is empty and clean
- Assemble the vacuum line — connect filter flask side-arm → vacuum tubing → vacuum trap → vacuum tubing → vacuum source; use heavy-wall vacuum tubing throughout (thin-wall tubing collapses under vacuum)
- Place the membrane — center the membrane on the funnel support; wet aqueous-use membranes with a few drops of compatible solvent if required; ensure no edge gaps between membrane and funnel rim
- Seat the funnel — press the funnel firmly onto the flask to create a seal; for glass-on-glass connections, use a rubber adapter ring or vacuum grease to ensure an airtight seal
- Apply vacuum before adding sample — turn on the vacuum source and verify the system holds vacuum before loading the sample; this confirms no leaks in the assembly
- Load the sample — pour sample into the funnel; do not overfill beyond the funnel rim; for large volumes, add in portions
- Monitor flow and vacuum level — flow should begin within seconds; slow flow indicates insufficient vacuum, a clogged membrane, or an air leak; check these in order
- Release vacuum before disassembly — always vent the system to atmosphere before removing the funnel to prevent back-surge that could contaminate the filtrate
Sterile Filtration Protocol for Cell Culture Media
Sterile filtration of cell culture media, serum supplements, and biological buffers follows the standard vacuum filtration protocol with additional sterility requirements:
- Use a sterile disposable filter unit (pre-assembled funnel + 0.2 µm CA or PES membrane + receiver flask) in a certified biosafety cabinet or laminar flow hood
- Confirm the membrane is 0.2 µm — not 0.45 µm — before beginning; verify the membrane material is cellulose acetate or PES for protein-containing solutions
- Do not use PVDF or nylon membranes for serum or media containing high protein concentrations without verifying low protein binding specification
- Sterilize reusable glass filter assemblies by autoclaving at 121°C before use; use sterile technique throughout the setup and sample loading process
- After filtration, transfer the filtrate to sterile storage vessels in the biosafety cabinet without opening the receiver flask outside the hood
- Label the filtrate container with membrane lot number, pore size, filtration date, and operator per GLP/GMP documentation requirements; see our lab labeling systems guide for secondary container labeling requirements
HPLC Mobile Phase Filtration
HPLC mobile phase preparation is one of the highest-volume vacuum filtration applications in analytical chemistry labs. Mobile phases must be filtered before use to remove particulates that would clog HPLC columns, damage pump check valves, and generate back-pressure spikes. The standard protocol:
- Use a 0.45 µm nylon or PVDF membrane for aqueous mobile phases; use a 0.45 µm PTFE membrane for organic mobile phase components (methanol, acetonitrile, isopropanol)
- A 0.2 µm membrane is not typically required for HPLC mobile phases; 0.45 µm provides adequate column protection without excessive filtration time
- Use a Buchner funnel setup with a borosilicate glass flask; for organic solvents, confirm all components including tubing are solvent-compatible
- Pre-rinse the membrane and funnel assembly with 20–50 mL of the mobile phase to remove extractables before collecting the filtrate for HPLC use
- Filter mobile phases directly into the HPLC solvent reservoir or a capped borosilicate glass reagent bottle; see our reagent bottle selection guide for bottle material selection for HPLC solvents
Troubleshooting: Common Vacuum Filtration Problems
| Problem | Most Likely Cause | Solution |
|---|---|---|
| Slow or no flow | Insufficient vacuum; air leak in connections; membrane clogged; pore size too small for sample | Check vacuum level with gauge; inspect all tubing connections; consider pre-filtration with coarser membrane; verify pore size matches sample |
| Vacuum lost mid-filtration | Trap full; tubing connection loose; flask side-arm seal leaking | Empty vacuum trap; re-seat all connections; apply vacuum grease to glass joints; replace cracked tubing |
| Filtrate contaminated or turbid | Membrane edge leak (sample bypassed membrane); wrong pore size; membrane failure | Re-seat membrane ensuring full edge contact; confirm correct pore size; replace membrane and re-filter |
| Membrane collapses or tears | Vacuum applied too rapidly; vacuum level too high for membrane type; unsupported membrane | Apply vacuum gradually; reduce vacuum level; confirm membrane is on full support surface |
| Filtrate discolored or unusual odor | Chemical incompatibility between sample and membrane material; extractables from membrane | Verify membrane chemical compatibility; pre-rinse membrane before use; switch membrane material |
| Liquid in vacuum trap or pump | Flask overflow; vacuum trap not installed; trap full | Empty and clean trap immediately; reduce sample volume per filtration; install trap if absent |
| Foaming in sample during filtration | Degassing of dissolved gases under reduced pressure; common with biological media and buffers | Reduce vacuum level; filter at slower rate; pre-degas sample by warming to 37°C before filtration |
Where Vacuum Filtration Systems Are Used
- Cell culture and microbiology labs — sterile filtration of cell culture media, PBS, FBS, and buffers using 0.2 µm CA or PES membranes; requires biosafety cabinet setup for sterile technique
- Analytical chemistry and HPLC labs — 0.45 µm mobile phase filtration using nylon or PTFE membranes to protect column integrity and pump hardware
- Pharmaceutical QC and manufacturing — sterile filtration of drug solutions and excipient buffers; GMP-documented filtration with lot traceability on membranes and filter units
- Environmental testing labs — MCE membrane particle collection for water analysis; glass fiber pre-filters for heavily particulate environmental samples
- Clinical and hospital labs — filtration of reagents and staining solutions; disposable sterile filter units for rapid aseptic transfers
- Industrial QC labs — process liquid clarification, quality control sample preparation, turbidity reduction before instrument analysis
Browse our full vacuum filtration collection for filter membranes, Buchner funnels, filter flasks, vacuum traps, sterile disposable filter units, and vacuum pumps — stocked in the USA, ships fast.
See the reagent bottle selection guide for pairing the right bottle to your filtrate collection setup, the bottle top dispensers guide for downstream dispensing of filtered reagents, the lab labeling systems guide for GHS-compliant labeling of filtered secondary containers, and the chemical storage and OSHA guide for compliant storage of filtered solvents and reagents.
Frequently Asked Questions
What pore size do I need for sterile filtration?
Sterile filtration requires a 0.2 µm membrane, which removes bacteria and most microorganisms and is recognized as the sterilizing grade under FDA guidance. A 0.45 µm membrane removes particles but does not achieve sterility. For mycoplasma removal from cell culture media, a 0.1 µm membrane is required, as mycoplasma organisms are small enough to pass through a standard 0.2 µm filter in some conditions.
What is the difference between PVDF and cellulose acetate filter membranes?
Cellulose acetate (CA) membranes have very low protein binding and are the preferred membrane for cell culture media, serum, and biological buffers where maximum protein recovery is critical. PVDF membranes offer broader chemical compatibility including moderate solvent resistance, lower extractables, and good flow rates for general lab filtration. For protein-containing biological solutions, CA or PES should be the first choice over PVDF.
Why is a vacuum trap required in a vacuum filtration setup?
A vacuum trap placed between the filter flask and the vacuum source intercepts any liquid pulled past the flask side-arm and prevents it from reaching the vacuum pump or house vacuum line. Without a trap, filtrate overflow or back-surge can damage the vacuum pump, contaminate the central vacuum system, or — with chemical samples — create a chemical hazard at the vacuum outlet. A vacuum trap is required in every vacuum filtration setup involving liquid samples.
What causes slow flow in a vacuum filtration system?
Slow flow is caused most commonly by: insufficient vacuum at the membrane (check gauge reading), air leaks at tubing connections or funnel-to-flask seals, membrane clogging from a heavily particulate sample requiring pre-filtration, or a pore size that is too small for the sample viscosity. Check vacuum level first, then inspect all connections for leaks, then evaluate whether a glass fiber pre-filter would reduce membrane loading before final filtration.
Can PTFE membranes be used for aqueous filtration?
Standard hydrophobic PTFE membranes will not pass aqueous solutions without pre-wetting with a compatible organic solvent (typically methanol or isopropanol). Hydrophilic PTFE membranes are specifically manufactured for aqueous use and provide the same excellent chemical resistance across both aqueous and solvent applications. For aqueous samples requiring broad chemical compatibility, hydrophilic PTFE is the correct specification.
