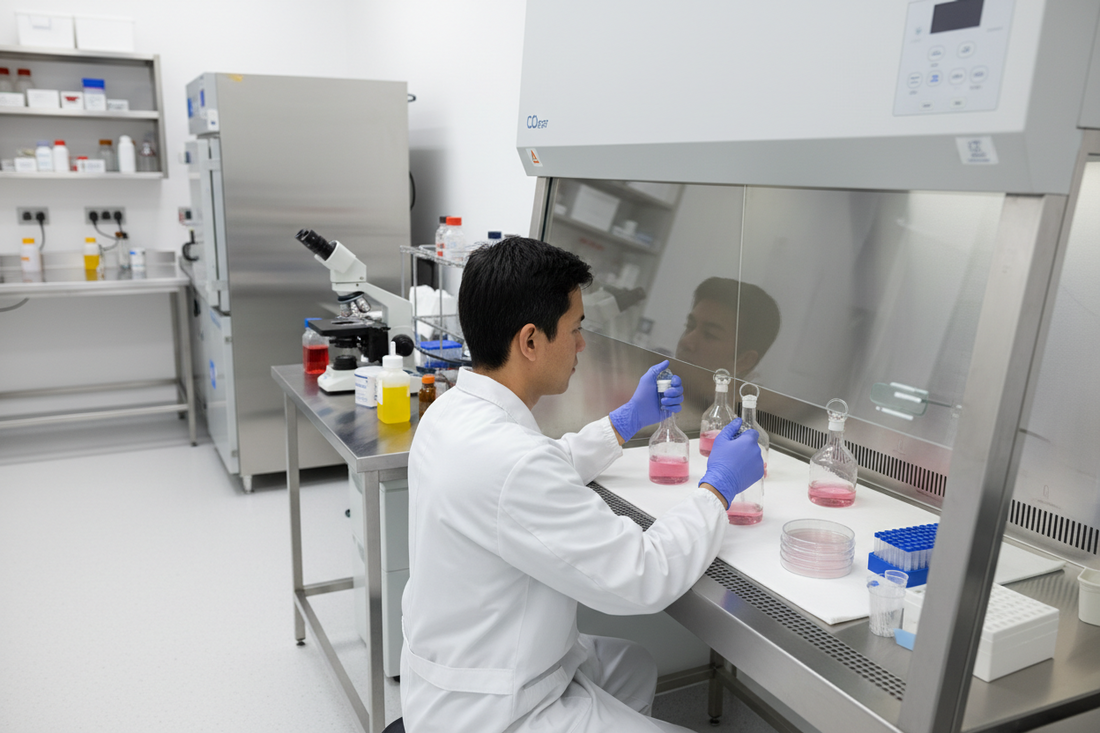

How to Set Up a Cell Culture Workspace

Cell culture is one of the most contamination-sensitive workflows in the laboratory — and most contamination problems aren’t caused by faulty reagents or defective equipment. They’re caused by workspace setup errors: a BSC placed in a high-traffic zone, an incubator water pan that never gets cleaned, consumables brought into the hood without decontamination, or technique shortcuts that accumulate until a flask goes turbid. In our experience working with cell biology, pharmaceutical, and research labs, a cell culture workspace set up correctly from day one runs cleanly for years. One set up poorly trains every researcher who works in it into contamination-generating habits. This guide covers everything from room layout to incubator commissioning to daily sterile technique.

The Core Equipment List

Before designing the workspace layout, establish the equipment list. A functional mammalian cell culture workspace requires the following:

Equipment	Minimum Specification	Notes
Biological Safety Cabinet (BSC)	Class II Type A2, NSF/ANSI 49 certified	Not a laminar flow hood — see below
CO₂ Incubator	37°C, 5–7% CO₂, ≥95% relative humidity	Water-jacketed preferred for temperature stability
Inverted microscope	4×–40× phase contrast objectives	For live cell morphology observation
Refrigerator	2–8°C, dedicated to cell culture reagents	No food; no chemicals
Freezer	−20°C for media, enzymes, and serum aliquots	Separate from −80°C long-term storage
−80°C Freezer	For cell pellets and intermediate cryostorage	Required before liquid nitrogen transfer
Liquid nitrogen dewar	For long-term cryopreservation	Requires LN₂ handling PPE and SOP
Water bath	37°C, for media and reagent thawing	Dedicated; cleaned regularly
Centrifuge	Benchtop, ≥300 × g, swinging bucket rotor	For cell pelleting and media removal
Pipette controller	Battery-powered, accepts 1–25 mL serological pipettes	One per operator minimum
Micropipettes	P20, P200, P1000 minimum set	Reserved for cell culture use only
Hemocytometer	Neubauer improved ruling	For manual cell counts with trypan blue
Waste container	Chemical waste-rated	Decontaminated with bleach before disposal

Everything on this list serves a specific, non-substitutable function. Cutting any of them creates a workaround that introduces contamination risk.

Room and Layout Design: The Triangle Configuration

How you physically position equipment in the cell culture room matters as much as what equipment you buy. The organizing principle is the triangle configuration — the BSC, the refrigerator, and the incubator form the three points of a working triangle, all within close reach of each other. Every time a researcher leaves the BSC with an open flask to retrieve something from across the room, they expose the culture to unfiltered room air. The goal is to minimize any movement that takes the culture away from the ISO 5 environment of the BSC.

Room placement rules:

• BSCs must not face each other — opposing inward airflows create cross-currents that disrupt each unit’s protective air curtain and contaminate both work surfaces
• BSCs away from doors, HVAC vents, and high-traffic paths — room air disturbance at the BSC sash disrupts the inward airflow that protects the operator and the culture
• Incubators away from vibration sources — chronic low-level vibration from nearby centrifuges, freight elevators, or HVAC equipment disrupts cell adhesion in adherent cultures and reduces reproducibility
• Windows sealed — unsealed windows create pressure and airflow variability that disrupts BSC performance
• Dedicated zone with restricted access — cell culture work done on shared general-lab benches is contamination-prone regardless of technique quality

The Biological Safety Cabinet: Your Most Critical Equipment Selection

The BSC is the single most important piece of equipment in a cell culture workspace and the one most frequently misconfigured or misunderstood.

Why a BSC, not a laminar flow hood:
A laminar flow (clean bench) hood protects the sample from contamination but exhausts air directly toward the operator. For mammalian cell culture using any human-derived cell lines — classified as BSL-2 under CDC/NIH BMBL 6th Edition — a Class II Type A2 BSC is required. The Class II A2 BSC provides three-way protection: the work surface (ISO 5 HEPA-filtered downflow air), the operator (inward airflow at the sash), and the environment (HEPA-filtered exhaust). A laminar flow hood provides only the first of these three. See our laminar flow hood guide for the full side-by-side comparison.

NSF/ANSI 49 certification:
Any BSC used in cell culture must be NSF/ANSI 49 certified — verifying inflow velocity, downflow velocity, HEPA filter efficiency, and noise level. Annual recertification by a qualified professional is required under NSF 49 protocols, including HEPA filter integrity testing, airflow velocity profiling, and cabinet leak testing.

Before every session:

• Spray the interior work surface with 70% ethanol; wipe with lint-free tissue
• Allow 5 minutes of contact time, then wipe dry
• Allow the BSC to run for at least 15 minutes before beginning work to establish stable airflow

CO₂ Incubator: Specifications and Commissioning

The CO₂ incubator maintains the chemical and physical environment your cells live in between BSC sessions. For mammalian cell culture:

• Temperature: 37°C, verified with an independent calibrated thermometer — not only the panel readout
• CO₂ concentration: 5–7% (5% is standard for bicarbonate-buffered media)
• Humidity: ≥95% relative humidity, maintained by a water pan in the base

Water-jacketed vs. air-jacketed:
Water-jacketed incubators maintain temperature through a surrounding water reservoir — recovery after door opening is slower but more stable, and the unit holds temperature through brief power interruptions. For critical cultures and research environments, water-jacketed is the more reliable choice.

Incubator hygiene — the most overlooked contamination source:
The incubator water pan is the primary source of chronic, hard-to-eliminate fungal and bacterial contamination in cell culture labs. Required maintenance schedule:

• Weekly: Inspect and top off the water pan with sterile or copper-supplemented water
• Monthly: Wipe all interior surfaces with 70% ethanol; inspect shelves for condensate pooling
• Quarterly: Full disassembly — decontaminate all interior surfaces with 70% ethanol followed by 10% bleach (30-minute contact time), rinse with sterile water, dry completely before reassembling
• Add antifungal agent to the water pan (copper sulfate at low concentration or a commercial incubator biocide) to prevent mold establishment in the humid interior

Keep flasks evenly spaced with adequate airspace between them. Crowding flasks reduces CO₂ and temperature uniformity and can create localized microenvironment variability that produces irreproducible results.

Sterile Technique: The Daily Practice That Determines Outcomes

Equipment creates the conditions for sterile work. Technique determines whether those conditions are maintained. These are the non-negotiable standards for every cell culture session.

Personal PPE for every session:

• Dedicated lab coat (reserved for the cell culture room; not worn in general lab areas)
• Nitrile gloves — spray with 70% ethanol before entering the BSC and after any surface contact outside the BSC
• Hair tied back; no loose clothing that creates air movement at the sash

Everything entering the BSC is decontaminated:
Spray every item — tip boxes, tube racks, media bottles, pipette packs — with 70% ethanol before placing it in the BSC. This is the single most important physical habit in cell culture technique. Every unsprayed item is a potential contamination vector; room air carries fungal spores and bacterial particles that adhere to plastic surfaces between uses.

Work from clean to dirty:
Position the cleanest items (unopened media, sterile reagents) at the rear of the BSC, closest to the HEPA filter. Waste containers and aspirated media belong at the front or sides. Never reach across an open flask or plate — your sleeve and glove pass directly over the open vessel.

Caps and lids:
Never place a bottle cap face-down on the BSC surface. Hold the cap face-down in your hand or set it face-up — never face-up on the bench where the sterile inner surface is exposed to cabinet air.

After every session:

1. Aspirate all waste; remove all items from the BSC
2. Spray interior surfaces with 70% ethanol; wipe with lint-free tissue
3. Run UV lamp for 30–60 minutes with the sash closed
4. Log the session: cell line, passage number, flask ID, observations, any anomalies

Essential Consumables for Cell Culture

Culture vessels:

• T-25 (25 cm²), T-75 (75 cm²), and T-175 (175 cm²) tissue culture-treated flasks for maintenance and expansion
• 6-, 12-, 24-, 48-, and 96-well TC-treated plates for experimental work
• All must be TC-treated for adherent cell lines — surface modification enables cell attachment; untreated flasks are not substitutes

Media and reagents:
Complete growth media appropriate for your cell line (DMEM, RPMI, MEM, F-12, etc.); FBS or defined serum-free supplement; sterile PBS for washing; Trypsin-EDTA or TrypLE Express for passaging adherent cells; DMSO (10% in serum-containing media) for cryopreservation.

Sterile filtration:
All media and reagents prepared in-lab must be sterile-filtered through a 0.2-micron PES or cellulose acetate membrane filter before use. A 0.2-micron filter removes bacteria and most fungi. It does not remove mycoplasma or viral particles — filter-sterilization is not a substitute for proper aseptic technique.

Pipettes and tips:
Single-use sterile serological pipettes (1, 2, 5, 10, 25 mL) — never re-enter a media bottle after contacting cells; aerosol-barrier filtered tips for micropipettes to prevent backflow contamination into the pipette barrel. Never use unfiltered tips for cell culture liquid handling.

Browse our full cell culture and microbiology collection for TC-treated flasks, serological pipettes, sterile filters, and media reagent vessels — authorized dealer pricing, ships from the USA →

Contamination: Sources, Detection, and Response

Contamination is the most common and most costly problem in cell culture. Know the sources, know the signs, and have a response protocol before you need it.

Bacterial and fungal contamination:

• Visual sign: Media turns turbid (cloudy), or color-shifts yellow in bicarbonate-buffered media (acidification from microbial metabolic activity)
• Source: Items introduced to the BSC without ethanol decontamination, contaminated incubator water pan, or non-sterile media preparation
• Response: Discard the flask and all media from the same preparation lot. Decontaminate the incubator. Identify and eliminate the source before starting a new culture.

Mycoplasma contamination:

• Visual sign: None — mycoplasma-infected cultures look completely normal. This makes mycoplasma the most insidious contamination type in cell culture.
• Detection: PCR-based mycoplasma test kit or fluorescent Hoechst 33258 staining — test every new cell line before use and every established line quarterly. NCBI research (PMC10000895) confirms mycoplasma testing is the single most impactful quality control measure for cell culture labs.
• Source: Non-sterile reagents, non-authenticated cell lines, operator respiratory exposure (mycoplasma are human pathogens present in the upper respiratory tract)
• Response: Mycoplasma-positive cultures must be discarded or treated with anti-mycoplasma antibiotics (BM Cyclin, Plasmocin). Never move mycoplasma-positive cells to a shared incubator.

Cross-contamination between cell lines:

• Sign: Unexpected morphology changes, altered growth kinetics, discordant experimental results
• Detection: Short tandem repeat (STR) profiling — the definitive cell line authentication method recommended by ATCC, ECACC, and NCBI
• Prevention: Work with one cell line at a time in the BSC; never passage two cell lines in the same session without complete decontamination between; source all cell lines from authenticated repositories (ATCC, ECACC)

Cell Line Authentication and Documentation

Every cell line in your lab should be authenticated by STR profiling before use and after any significant passage expansion or unusual phenotypic change. Studies in peer-reviewed literature have documented that a substantial proportion of widely used cell lines in published research were misidentified — a problem that starts at acquisition and compounds with every non-authenticated passage. Source cell lines from certified repositories (ATCC, ECACC) or authenticate in-house via a commercial STR service.

Maintain a written or electronic culture logbook for every flask. Minimum recorded information per entry:

• Date and operator name
• Cell line and passage number
• Flask ID
• Procedure performed (media change, passage, experimental seeding)
• Confluence estimate and morphology notes
• Any anomalies observed
• Incubator location

A log entry takes 2 minutes per session and makes every contamination event traceable. Without documentation, a contamination event forces you to discard everything with uncertain provenance.

See the laminar flow hood guide for the full BSC vs. laminar flow hood distinction before purchasing your primary containment equipment. See the chemical storage and OSHA guide for how reagent storage integrates with your cell culture workspace, and the new lab setup guide for full-lab design context.

Frequently Asked Questions

What equipment do I need to set up a cell culture workspace?

The minimum functional mammalian cell culture workspace requires: a Class II Type A2 BSC (NSF/ANSI 49 certified), a CO₂ incubator (37°C, 5–7% CO₂, ≥95% humidity), an inverted phase contrast microscope, a benchtop centrifuge (≥300 × g), a 37°C water bath, a dedicated cell culture refrigerator and −20°C freezer, −80°C storage, cryogenic storage capability (liquid nitrogen dewar), a pipette controller, and a stock of sterile TC-treated flasks and serological pipettes.

What is the difference between a BSC and a laminar flow hood for cell culture?

A Class II A2 biological safety cabinet protects the work, the operator, and the environment — inward airflow at the sash prevents biological aerosols from reaching the operator, and HEPA-filtered exhaust protects the room. A laminar flow hood protects only the work surface and exhausts air directly toward the operator. For mammalian cell culture, including all human-derived cell lines, a BSC is required. A laminar flow hood is not an acceptable substitute and constitutes a biosafety violation for BSL-2-classified materials.

What causes contamination in cell culture?

The most common sources are: (1) items brought into the BSC without ethanol decontamination, (2) contaminated incubator water pans — the primary source of chronic fungal contamination, (3) poor sash discipline creating air turbulence at the hood opening, (4) non-sterile media or reagents, and (5) mycoplasma introduced through non-authenticated cell lines or respiratory exposure. Most contamination events are technique-related and preventable with consistent standard operating procedures.

How do I prevent mycoplasma contamination in my cell culture lab?

Test every new cell line for mycoplasma before introducing it into the lab. Test all established lines quarterly using a PCR-based mycoplasma assay or Hoechst 33258 fluorescent staining. Source all cell lines from authenticated repositories (ATCC, ECACC). Never work in the BSC while experiencing a respiratory illness. Keep dedicated reagent aliquots per cell line rather than shared stock bottles. Mycoplasma-positive cultures must be discarded or treated with anti-mycoplasma antibiotics and must never be placed in a shared incubator.

What settings should I use for a mammalian cell culture CO₂ incubator?

Standard mammalian cell culture requires 37°C, 5% CO₂, and ≥95% relative humidity. Verify temperature with an independent calibrated thermometer — do not rely solely on the incubator panel readout. Clean the water pan and all interior surfaces on a regular maintenance schedule and add copper sulfate or a commercial antifungal biocide to the water pan. The water pan is the most common source of incubator-related contamination in cell culture labs and requires full decontamination quarterly regardless of visual appearance.

---
