Fixed-Angle vs Swinging-Bucket Rotors: Which Do You Need?
Share
Choosing between a fixed-angle rotor and a swinging-bucket rotor is one of the most consequential decisions you'll make when configuring your centrifuge setup — and it's not about which is better. It's about which is right for what you're separating. Get it wrong and you'll either destroy your gradient, produce a loose pellet you can't reliably aspirate, or leave throughput on the table by running a rotor that's wrong for your volume. We've seen all 3. Here's how to get it right the first time.
How Fixed-Angle and Swinging-Bucket Rotors Actually Work
A fixed-angle rotor holds tubes at a constant angle — typically 25°–45° relative to the vertical axis of rotation. As the rotor spins, particles sediment along that fixed angle, hit the outer tube wall, and slide down to form a pellet on the bottom-side of the tube. The geometry is rigid, which means no moving parts and significantly lower mechanical stress on the rotor body.
A swinging-bucket rotor (also called a swing-out rotor) starts with buckets hanging vertically. When the rotor accelerates, centrifugal force swings them out to a horizontal position — 90° to the axis of rotation. Particles sediment straight down through the sample volume and accumulate evenly at the flat bottom of the tube. When the rotor decelerates, the buckets swing back to vertical, and the pellet stays centered at the tube bottom.
Fixed-Angle vs. Swinging-Bucket: Full Spec Comparison
| Parameter | Fixed-Angle Rotor | Swinging-Bucket Rotor |
|---|---|---|
| Typical tube angle | 25°–45° fixed | 90° (horizontal at speed) |
| Maximum g-force capability | Higher — no moving parts = less metal stress | Lower — bucket pivot mechanics limit max RCF |
| Sedimentation speed | Faster — shorter pathlength to wall | Slower — full tube depth path |
| Pellet location | Side-bottom of tube wall | Centered at tube bottom |
| Supernatant removal ease | Moderate — off-center pellet | Easier — centered pellet, cleaner aspiration |
| Gradient centrifugation | Not suitable — angle disrupts gradient layers | Required — horizontal layers stay intact |
| Microplate compatibility | No | Yes — with correct adapter |
| Tube capacity per run | Higher — compact geometry fits more tubes | Lower — bucket design limits tube count |
| Sample throughput | Better for high tube count runs | Lower tube count, higher flexibility |
| Moving parts / mechanical stress | None — rigid geometry | Yes — bucket pivots under load |
| Adapter flexibility | Limited | High — many adapters for different tube formats |
When to Use a Fixed-Angle Rotor
Fixed-angle rotors are the right call when speed, g-force, and tube throughput matter more than pellet geometry. Because there are no moving parts, these rotors tolerate significantly higher RCF values — making them essential for pelleting small, dense particles that require maximum centrifugal force to sediment efficiently.
Use a fixed-angle rotor for:
- Pelleting bacteria and yeast — small cells require high RCF to pellet quickly; 5,000–10,000 × g is typical
- DNA/RNA precipitation — compact pellets at high g-force, short run times
- Protein precipitation — ammonium sulfate cuts, TCA precipitation, PEG precipitation
- Subcellular fractionation — nuclear, mitochondrial, and microsomal pellets
- High-throughput microcentrifuge runs — multiple 1.5mL or 2mL tubes per run
- Isopycnic CsCl gradients (ultracentrifuge) — equidistant sedimentation path favors this geometry at ultra-high g-forces
When to Use a Swinging-Bucket Rotor
Swinging-bucket rotors are non-negotiable for any application where sample layers must remain horizontal — and practically superior for any workflow where clean supernatant recovery is the priority. The bucket geometry ensures that density gradient layers form perpendicular to the centrifugal force and stay undisturbed when the rotor slows down.
Use a swinging-bucket rotor for:
- Density gradient centrifugation — Ficoll, sucrose, Percoll, and CsCl rate-zonal gradients all require horizontal layer formation
- Cell separation (blood, PBMC isolation) — Ficoll-Paque PBMC isolation is a classic swinging-bucket application; the buffy coat layer must form horizontally and stay intact during deceleration
- Centrifugation of microplates — cell culture plates, ELISA plates, and deep-well plates require a swinging-bucket rotor with the correct plate adapter
- Phase separation — phenol-chloroform (Trizol) extractions produce cleaner, more stable phase interfaces in a swinging-bucket rotor
- Low-concentration precious samples — centered pellet at tube bottom makes complete recovery easier with minimal buffer volume
- Virus and large particle banding — buoyant density separations where band sharpness matters
Rotor Selection by Application: Quick-Reference Matrix
| Application | Recommended Rotor | Typical RCF | Key Reason |
|---|---|---|---|
| Bacteria/yeast pelleting | Fixed-angle | 3,000–10,000 × g | High g-force, fast run time |
| Mammalian cell pelleting | Either | 200–600 × g | Low RCF requirement; both work |
| PBMC isolation (Ficoll) | Swinging-bucket | 400–800 × g | Gradient integrity essential |
| DNA/RNA precipitation | Fixed-angle | 10,000–16,000 × g | High g-force, compact pellet |
| Phenol-chloroform extraction | Swinging-bucket | 1,000–2,000 × g | Stable phase interface |
| Sucrose/Percoll gradient | Swinging-bucket | 500–3,000 × g | Horizontal layers required |
| Microplate centrifugation | Swinging-bucket | 300–1,000 × g | Only rotor type compatible |
| Subcellular fractionation | Fixed-angle | 600–100,000 × g | Sequential high-g pelleting |
| Virus concentration/banding | Swinging-bucket | 10,000–100,000 × g | Band sharpness, layer integrity |
| Protein precipitation | Fixed-angle | 5,000–15,000 × g | Compact pellet, fast sedimentation |
RPM vs. RCF: Always Spec Your Protocol in RCF
One of the most common centrifugation errors is recording protocols in RPM instead of RCF (Relative Centrifugal Force, expressed as × g). RPM is rotor-specific — 3,000 RPM in a rotor with a 15cm radius produces a completely different g-force than 3,000 RPM in a rotor with a 9cm radius. RCF is the only number that transfers between instruments. Always confirm your protocol lists RCF values, and use the rotor's k-factor if you're calculating run times for pelleting applications.
Where r = radius in cm (center of rotor to bottom of tube) and N = speed in RPM. Most modern centrifuges from LW Scientific and Heidolph display RCF directly — use it.
Centrifuges at LabSupplies.com for Fixed-Angle and Swinging-Bucket Applications
We carry centrifuges from LW Scientific and Heidolph — both authorized dealer relationships — covering everything from basic benchtop microcentrifuges to high-speed refrigerated units. Here's how to match rotor type to instrument class:
- Microcentrifuges (LW Scientific) — Fixed-angle rotors standard; 12–24 positions for 1.5mL/2mL tubes; up to 16,000 × g. Ideal for molecular biology, DNA/RNA work, protein prep.

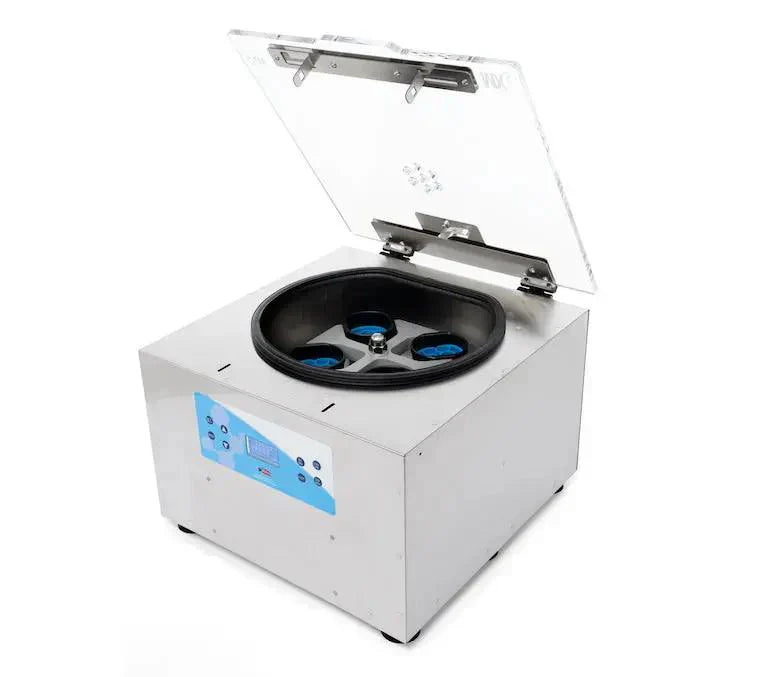

- Clinical/benchtop centrifuges (LW Scientific) — Available with swinging-bucket rotors and microplate adapters; standard 50mL and 15mL conical compatibility. The right instrument for cell culture labs and clinical sample processing.
- High-speed refrigerated centrifuges (Heidolph) — Interchangeable rotor systems accommodate both fixed-angle and swinging-bucket configurations. Critical for temperature-sensitive samples like primary cells, viruses, and gradient separations.
As an authorized dealer for LW Scientific and Heidolph, we work directly with their engineering teams and can help you spec the right rotor configuration for your application. Reach out at support@labsupplies.com.
Frequently Asked Questions
What is the difference between a fixed-angle and swinging-bucket rotor?
A fixed-angle rotor holds tubes at a constant 25°–45° angle throughout the spin, producing a pellet on the lower side of the tube wall. A swinging-bucket rotor allows buckets to swing out to 90° during the spin, so particles sediment straight down to the centered tube bottom. Fixed-angle rotors reach higher g-forces; swinging-bucket rotors produce cleaner pellets and are required for gradient centrifugation.
Do I need a swinging-bucket rotor for Ficoll gradient PBMC isolation?
Yes — Ficoll-Paque PBMC isolation requires a swinging-bucket rotor. The density gradient layers must form horizontally during the spin and stay intact as the rotor decelerates. A fixed-angle rotor will disrupt the gradient on deceleration, destroying the buffy coat band and contaminating your PBMC fraction.
Can I use a fixed-angle rotor for cell culture pelleting?
Yes, for basic cell pelleting (200–600 × g) either rotor type works. Fixed-angle rotors produce an off-center pellet on the tube wall, which is manageable at low g-forces with larger cells. For gentle pelleting of fragile primary cells where complete recovery matters, a swinging-bucket rotor gives you a cleaner, centered pellet that's easier to resuspend without loss.
Why should centrifuge protocols specify RCF instead of RPM?
RCF (× g) accounts for rotor radius — RPM does not. The same RPM setting on 2 different rotors produces different g-forces depending on the rotor's radius. Recording protocols in RCF ensures reproducibility across instruments and labs. Use the formula RCF = 1.118 × 10⁻⁵ × r × N² to convert if your protocol only lists RPM.
Which rotor type is better for high-throughput labs?
Fixed-angle rotors are generally better for high-throughput applications because their compact geometry accommodates more tubes per run. Swinging-bucket rotors offer greater adapter flexibility — including microplate support — which can offset the lower tube count for labs running plate-based assays. The right answer depends on your primary tube format.
