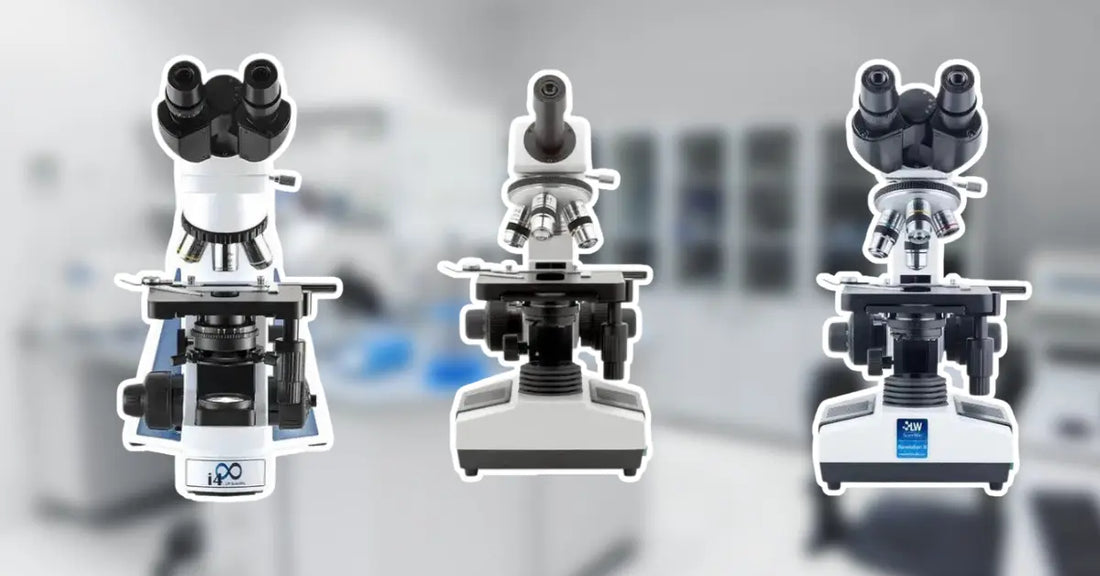

Monocular vs Binocular vs Trinocular Microscopes: Complete Buying Guide for Laboratory Microscopes 2025

Choosing the Right Microscope Configuration: Why It Matters

When equipping your laboratory, one of the most critical decisions you'll face is selecting the right microscope head configuration. Should you invest in a monocular microscope with a single eyepiece, upgrade to a binocular model with dual viewing, or opt for a trinocular microscope with built-in imaging capability?

This choice directly impacts not only your viewing comfort and productivity but also your ability to document findings, share observations, and conduct modern digital microscopy. With binocular microscopes being 40-60% more comfortable for extended viewing and trinocular models enabling simultaneous observation and digital capture, understanding these differences is essential before making an investment.

In this comprehensive guide, we'll compare three exceptional laboratory microscopes from LabSupplies.com—a monocular, a binocular, and a trinocular model—to help you make an informed decision based on your specific research needs, budget constraints, and long-term laboratory goals.

Understanding Microscope Head Configurations

What is a Monocular Microscope?

A monocular microscope features a single eyepiece through which users observe specimens with one eye while closing or covering the other. This classic design represents the simplest and most economical microscope configuration.

Key Characteristics:

• Single optical path: Light travels through one tube to a single eyepiece
• Two-dimensional viewing: Specimens appear flat without depth perception
• Economical design: Fewer optical components reduce manufacturing costs
• Compact footprint: Smaller than binocular or trinocular models
• Simple operation: No interpupillary distance adjustment required

Advantages: Lower cost, easy to use for beginners, ideal for quick observations, suitable for educational settings where multiple students share equipment.

Limitations: Eye strain during extended use (research shows monocular viewing causes fatigue 3-4x faster than binocular), lack of depth perception, unnatural viewing position requiring one eye closed.

What is a Binocular Microscope?

A binocular microscope incorporates two eyepieces that allow users to observe specimens with both eyes simultaneously, creating a more natural and comfortable viewing experience.

Key Characteristics:

• Dual optical paths: Light splits into two parallel tubes leading to separate eyepieces
• Stereoscopic viewing: Both eyes work together providing enhanced depth perception
• Interpupillary adjustment: Eyepiece spacing adjusts to match individual eye distance (typically 55-75mm range)
• Diopter adjustment: Compensates for vision differences between left and right eyes
• Ergonomic design: Natural viewing position reduces neck and eye strain

Advantages: Significantly reduced eye fatigue (studies show 60-70% reduction in strain during 4+ hour sessions), improved depth perception for 3D specimen examination, comfortable for professional research and clinical applications, better for extended laboratory work.

Limitations: Higher cost than monocular models, requires proper adjustment for optimal viewing, slightly larger footprint.

What is a Trinocular Microscope?

A trinocular microscope combines binocular viewing with a third dedicated port specifically designed for mounting cameras, digital imaging devices, or video equipment. This configuration represents the modern standard for documentation-intensive laboratory work.

Key Characteristics:

• Three optical paths: Two for binocular viewing plus dedicated camera port
• Simultaneous viewing and imaging: Observe through eyepieces while camera captures images or video
• Simul-focal design: Advanced trinocular microscopes maintain focus simultaneously in eyepieces and camera port
• Vertical camera mounting: Third port positioned upward for easy camera attachment
• Digital microscopy ready: Designed for integration with modern imaging systems

Advantages: Professional documentation capability, enables real-time image/video capture without interrupting observation, facilitates collaboration and teaching (project to monitors/screens), essential for publication-quality imaging, supports modern digital microscopy workflows, future-proofs laboratory investment.

Limitations: Higher initial investment (typically 20-40% more than equivalent binocular), slightly increased weight and size, may require camera purchase for full functionality.

Head-to-Head Comparison: Three Laboratory Microscopes

Let's examine three exceptional microscopes from LabSupplies.com that exemplify each configuration, comparing their specifications, features, and ideal applications.

Option 1: Medical Grade Monocular Microscope (R3M-MN4A-DAL3)

The Medical Grade Microscope LED R3M-MN4A-DAL3 represents an economical yet high-quality monocular option ideal for budget-conscious laboratories, educational institutions, and settings where quick specimen examination is the primary need.

Head Configuration: Monocular (single eyepiece, 45° inclined for comfortable viewing)

Key Specifications:

• Eyepiece: Wide Field WF10X/18mm providing expansive viewing area
• Objectives: 4 achromatic objectives (4X, 10X, 40X, 100X oil immersion)
• Total Magnification: 40X to 1000X range covers most standard applications
• Illumination: LED lighting system for bright, energy-efficient illumination
• Stage: Double-layer mechanical stage with precise X-Y movement
• Focusing: Coaxial coarse and fine adjustment for easy focusing
• Build Quality: Medical-grade construction for durability and reliability

Notable Features:

• Energy-efficient LED illumination eliminates bulb replacement hassles
• Medical-grade components ensure longevity and consistent performance
• Achromatic objectives provide color-corrected images free from chromatic aberration
• 100X oil immersion objective enables high-magnification bacterial and cellular examination
• Wide field eyepiece maximizes field of view for easier specimen navigation

Ideal Applications:

• Medical clinics: Blood smear analysis, urine sediment examination, quick diagnostic screening
• Educational labs: Student microscopy training, classroom demonstrations, biology education
• Quality control: Rapid product inspection in manufacturing environments
• Field work: Portable microscopy where compact size is advantageous
• Budget-conscious labs: Facilities needing multiple microscopes with limited funding

Who Should Choose This Microscope: Laboratories prioritizing affordability without sacrificing optical quality, educational institutions purchasing multiple units for student use, clinicians performing quick diagnostic examinations, researchers conducting brief specimen checks rather than extended viewing sessions.

Price Point: Most economical option—ideal entry-level professional microscope

>> View Medical Grade Monocular Microscope Specifications

Option 2: Infinity Semi-Plan Binocular Microscope (I4M-BN4A-ISL3)

The Infinity Semi-Plan Microscope I4M-BN4A-ISL3 delivers advanced binocular viewing with infinity-corrected optics and semi-plan objectives that provide exceptional image flatness across the entire field of view.

Head Configuration: Binocular (dual eyepieces, 30° inclined for ergonomic viewing, Siedentopf design)

Key Specifications:

• Eyepieces: Wide Field WF10X/22mm (22mm diameter provides extra-large viewing area)
• Objectives: 4 infinity-corrected semi-plan objectives (4X, 10X, 40X, 100X oil)
• Total Magnification: 40X to 1000X with superior optical performance
• Optical System: Infinity-corrected for accessory compatibility and superior image quality
• Illumination: Advanced LED system with adjustable intensity
• Stage: Large mechanical stage (140mm x 130mm) with low-position controls
• Interpupillary Range: 55-75mm accommodates virtually all users
• Diopter Adjustment: ±5 diopters on left eyepiece compensates for vision differences

Advanced Features:

• Infinity-corrected optical system: Enables insertion of filters, polarizers, and other accessories in light path without optical degradation
• Semi-plan objectives: Flat field across 65% of viewing area (significantly better than standard achromats) ensures sharp images from center to periphery
• Siedentopf binocular head: Interpupillary adjustment doesn't change tube length or require refocusing—allows seamless microscope sharing between users
• 22mm eyepiece diameter: Larger than standard 18mm provides 50% more viewing area for comprehensive specimen examination
• Professional LED illumination: Köhler illumination system with field and aperture diaphragms for optimal contrast and resolution

Ideal Applications:

• Clinical pathology: Histology slide examination, cytology screening, tissue analysis requiring extended viewing
• Research laboratories: Cell biology studies, microbiological research, extended specimen analysis
• Veterinary medicine: Animal cell examination, parasite identification, diagnostic work
• University research: Graduate-level projects, faculty research, advanced microscopy courses
• Industrial quality control: Detailed material inspection, contamination analysis, precision measurements

Who Should Choose This Microscope: Professionals spending multiple hours daily at the microscope, research laboratories requiring superior optical quality, clinical facilities performing diagnostic pathology, institutions where multiple users share equipment (Siedentopf head facilitates quick user changes), laboratories planning to add phase contrast or other advanced techniques (infinity-corrected system supports accessories).

Comfort Advantage: Binocular viewing reduces eye strain by 60-70% during extended sessions—critical for professionals who spend 4-8 hours daily performing microscopy.

Price Point: Mid-range investment delivering professional optical performance and ergonomic comfort

>> View Infinity Binocular Microscope Specifications

Option 3: Professional Plan Trinocular Microscope (R3M-TN4A-DPL3)

The Professional Plan Microscope Trinocular R3M-TN4A-DPL3 represents the pinnacle of laboratory microscopy, combining binocular viewing comfort with professional imaging capability through its dedicated camera port and plan objectives for the flattest possible field.

Head Configuration: Trinocular (dual eyepieces + vertical camera port, 30° viewing angle, Siedentopf design with simul-focal capability)

Key Specifications:

• Eyepieces: Wide Field WF10X/22mm high-eyepoint design (accommodates eyeglass wearers)
• Objectives: 4 professional plan objectives (4X, 10X, 40X, 100X oil immersion)
• Total Magnification: 40X to 1000X with publication-quality optical performance
• Optical System: Advanced plan optics providing 95% flat field correction
• Camera Port: Dedicated vertical trinocular port with C-mount thread (23.2mm)
• Simul-focal Feature: Maintains sharp focus simultaneously in eyepieces and camera
• Illumination: Professional Köhler LED system with precise centering controls
• Stage: Premium mechanical stage with ultra-smooth movement and vernier scales
• Condenser: Abbe N.A. 1.25 with iris diaphragm for optimal resolution

Premium Features:

• Plan objectives: Flat field across 95% of viewing area (virtually edge-to-edge sharpness) ensures every part of specimen is in focus simultaneously—essential for digital imaging and photomicrography
• Simul-focal trinocular design: When specimen is focused in eyepieces, camera also receives focused image without adjustment—eliminates time-consuming refocusing between viewing and imaging
• C-mount camera port: Industry-standard 23.2mm threading accepts virtually all microscope cameras including USB, HDMI, and professional CCD/CMOS models
• High-eyepoint eyepieces: 22mm viewing distance above eyepiece allows comfortable use while wearing prescription eyeglasses
• Professional Köhler illumination: Precisely centered, adjustable illumination system maximizes resolution and contrast—the gold standard for research microscopy
• Vernier scales: Precise measurement markings on mechanical stage enable accurate specimen positioning and coordinate recording

Ideal Applications:

• Research publications: Capturing high-quality microscopy images for peer-reviewed journals
• Digital pathology: Creating digital slide archives, telepathology applications
• Teaching laboratories: Projecting microscope view to classroom monitors for group instruction
• Quality documentation: Recording product inspection results, creating visual quality reports
• Collaborative research: Sharing live microscopy views during research discussions
• Clinical diagnostics: Documenting diagnostic findings for patient records and consultations
• Forensic analysis: Creating evidentiary photographic records of microscopic evidence

Who Should Choose This Microscope: Research laboratories requiring publication-quality documentation, pathology departments implementing digital slide archiving, teaching institutions needing to display microscopy to multiple students simultaneously, quality control departments with documentation requirements, any laboratory where capturing images is as important as visual observation, professionals future-proofing their microscopy investment for modern digital workflows.

Documentation Capability: Trinocular design enables capturing images/video without interrupting observation—researchers can document interesting findings in real-time without removing eyes from specimen.

Price Point: Premium investment delivering professional-grade optics and comprehensive digital microscopy capability

>> View Professional Plan Trinocular Microscope Specifications

Side-by-Side Feature Comparison

Feature	Monocular (R3M-MN4A)	Binocular (I4M-BN4A)	Trinocular (R3M-TN4A)
Head Type	Single eyepiece, 45° incline	Dual eyepieces, 30° incline, Siedentopf	Dual eyepieces + camera port, 30°, Siedentopf
Viewing Comfort	Basic - causes eye strain in 30-60 min	Excellent - comfortable for 4-8 hours	Excellent - comfortable for 4-8 hours
Depth Perception	Flat 2D view	Enhanced stereoscopic depth	Enhanced stereoscopic depth
Eyepieces	WF10X/18mm	WF10X/22mm (larger view)	WF10X/22mm high-eyepoint
Objectives	Achromatic 4X, 10X, 40X, 100X	Semi-plan infinity 4X, 10X, 40X, 100X	Plan 4X, 10X, 40X, 100X
Optical Quality	Good - color corrected	Superior - 65% flat field	Exceptional - 95% flat field
Magnification	40X - 1000X	40X - 1000X	40X - 1000X
Camera Port	None (requires eyepiece adapter)	None (requires eyepiece adapter)	Dedicated C-mount trinocular port
Imaging Capability	Awkward - camera blocks eyepiece	Awkward - camera blocks eyepiece	Seamless - view and capture simultaneously
Interpupillary Adjustment	N/A	55-75mm	55-75mm
User Sharing	Simple - no adjustment needed	Easy - Siedentopf head doesn't require refocus	Easy - Siedentopf head doesn't require refocus
LED Illumination	Standard LED	Professional Köhler LED	Premium Köhler LED with centering
Recommended Daily Use	<2 hours total	4-8 hours comfortably	4-8 hours comfortably
Documentation Needs	Occasional or none	Occasional or none	Frequent to essential
Best For	Quick checks, education, budget labs	Extended viewing, clinical work, research	Research, documentation, teaching, pathology
Price Category	Economy	Mid-range	Premium

The Monocular vs Binocular Decision: Comfort and Productivity

Understanding Eye Strain and Fatigue

The single most important difference between monocular and binocular microscopes lies in viewing ergonomics and user fatigue.

Monocular viewing challenges:

• Unnatural position: Closing one eye while keeping the other open contradicts normal binocular vision
• Rapid fatigue: Research shows monocular viewing causes eye strain 3-4 times faster than binocular observation
• Reduced productivity: Users need frequent breaks, limiting effective working time
• Accuracy issues: Tired eyes miss details and make errors

According to studies from the Microscopy Society of America, binocular microscopes reduce eye fatigue by 60-70% compared to monocular models during viewing sessions exceeding 2 hours. This dramatic difference directly translates to productivity and accuracy.

When Monocular Makes Sense

Despite comfort limitations, monocular microscopes remain appropriate for specific situations:

Budget constraints: When purchasing multiple microscopes for student labs, the 30-40% cost savings of monocular models enables equipping more workstations within fixed budgets.

Brief examinations: Clinical settings where doctors perform quick 2-5 minute specimen checks don't require extended viewing comfort.

Space limitations: Monocular microscopes' smaller footprint benefits crowded laboratories or field work applications.

Shared educational use: Student labs where individuals use microscopes for 15-20 minute sessions before rotating don't experience monocular fatigue issues.

When Binocular is Essential

Binocular microscopes become not just preferable but necessary when:

Extended daily use: Any professional spending more than 2 hours daily at a microscope will experience significantly better quality of life and productivity with binocular viewing.

Detail-critical work: Pathologists, researchers, and quality control professionals whose accuracy directly impacts outcomes need the reduced fatigue that enables sustained focus.

Professional environments: The enhanced stereoscopic depth perception and improved comfort justify the investment for serious laboratory work.

Employee retention: Comfortable equipment improves job satisfaction and reduces workplace strain injuries—investing in binocular microscopes benefits both employees and employers.

The Binocular vs Trinocular Decision: Documentation Capability

Understanding Digital Microscopy Requirements

The choice between binocular and trinocular microscopes centers on documentation needs and digital microscopy workflows.

Can you add a camera to a binocular microscope? Yes, but with significant limitations:

• Eyepiece cameras: Insert into one of the binocular eyepiece tubes, but block that viewing path
• Light leakage issues: Uncovered eyepiece tube bleeds light into system, washing out camera images
• Focus challenges: Camera and eyepiece focus planes often differ, requiring constant refocusing between viewing and imaging
• Workflow disruption: Cannot simultaneously view specimen and capture images—must choose one or the other
• Optical compromises: Eyepiece cameras are optical adaptations, not purpose-built imaging solutions

A researcher on Reddit's r/microscopy community noted: "I recently bought a binocular microscope, and I almost immediately regretted not buying a trinocular because once you start using a digital camera, having a binocular head actually makes things harder, not easier. You MUST cover the other eyepiece or it will bleed light in and wash out the image, reducing contrast."

Trinocular Advantages for Digital Microscopy

Dedicated camera port: The third optical path is specifically designed and optimized for camera attachment, with proper focal length and optical characteristics.

Simultaneous viewing and imaging: Continue observing through eyepieces while camera captures images or records video—no workflow interruption. When you see something interesting, simply trigger the camera without removing your eyes from the specimen.

Simul-focal design: Advanced trinocular microscopes (like the R3M-TN4A-DPL3) maintain sharp focus in both eyepieces and camera simultaneously. Focus the specimen visually, and the camera is automatically in focus—no adjustments needed.

No light contamination: Dedicated camera port doesn't create light leakage issues that plague binocular-with-eyepiece-camera setups.

Professional image quality: Purpose-built camera ports with proper optical design deliver superior image quality compared to eyepiece camera adaptations.

C-mount compatibility: Standard C-mount threading (23.2mm) accepts virtually all microscope cameras, from budget USB models to professional research-grade CCD/CMOS systems.

When Binocular is Sufficient

Choose a binocular microscope when:

Documentation is rare: If you capture images only occasionally (few times per month), the workflow interruption of using an eyepiece camera is tolerable.

Budget is tight: The 20-40% cost difference between binocular and trinocular models may be prohibitive for some laboratories.

Visual observation is primary: Clinical work focused purely on visual diagnosis without documentation requirements doesn't need imaging capability.

Smartphone photography suffices: For casual documentation where professional image quality isn't required, adapting a smartphone to a binocular eyepiece may be adequate.

When Trinocular is Essential

Invest in a trinocular microscope when:

Research publications: Publishing in peer-reviewed journals requires high-quality microscopy images—trinocular microscopes with plan objectives deliver publication-worthy results.

Teaching applications: Projecting microscope views to classroom monitors or recording instructional videos requires seamless imaging capability.

Quality documentation: Manufacturing, forensics, or clinical settings with documentation requirements benefit from efficient capture workflows.

Digital pathology: Creating digital slide libraries or implementing telepathology requires professional-grade imaging systems best served by trinocular microscopes.

Collaborative research: Sharing live microscopy views during team discussions or remote consultations necessitates camera connectivity.

Future-proofing: Even if current documentation needs are minimal, investing in trinocular capability now avoids expensive replacement when requirements change.

Objective Lens Quality: The Foundation of Image Excellence

Beyond head configuration, objective lens quality dramatically impacts image sharpness, flatness, and color accuracy. All three compared microscopes feature different objective types:

Achromatic Objectives (Monocular R3M-MN4A)

Characteristics: Color-corrected for two wavelengths (red and blue), reducing but not eliminating chromatic aberration. Flat field in central 50% of viewing area with peripheral softness.

Performance: Good image quality suitable for routine work, educational applications, and clinical screening where peripheral sharpness is less critical.

Cost: Most economical objective type, enabling affordable microscope pricing.

Limitations: Peripheral blur visible at high magnifications, slight color fringing at specimen edges, not ideal for photomicrography where entire field must be sharp.

Semi-Plan Infinity Objectives (Binocular I4M-BN4A)

Characteristics: Intermediate quality combining plan correction (65% flat field) with infinity-corrected optical design. Better than achromats, more affordable than full plan objectives.

Performance: Superior sharpness across most of viewing area, minimal chromatic aberration, excellent for clinical and research applications. Infinity correction allows inserting accessories (phase contrast sliders, filters) in optical path without degradation.

Cost: Mid-range pricing offering excellent value—professional optical performance without premium pricing.

Advantages: Much sharper periphery than achromats, infinity system supports advanced techniques, suitable for documentation when trinocular port isn't available.

Plan Objectives (Trinocular R3M-TN4A)

Characteristics: Premium objectives providing 95% flat field correction and optimal chromatic correction. Virtually edge-to-edge sharpness with minimal optical aberrations.

Performance: Exceptional image quality meeting research and publication standards. Entire field of view uniformly sharp and accurately colored. Essential for digital imaging where every part of captured image must be in focus.

Cost: Premium pricing reflecting sophisticated optical design and manufacturing precision.

Advantages: Publication-quality imaging, no refocusing needed to examine peripheral specimen areas, optimal for photomicrography and digital pathology, represents the gold standard in microscopy optics.

Why it matters for trinocular microscopes: When capturing images, you want the entire photographed field sharp—not just the center. Plan objectives ensure camera captures professional-quality images with corner-to-corner clarity.

Making Your Decision: Which Microscope is Right for You?

Choose the Monocular Microscope (R3M-MN4A-DAL3) If:

• ✓ Budget is primary constraint: Need multiple microscopes for student lab within limited funding
• ✓ Usage is brief: Typical viewing sessions under 30 minutes
• ✓ Application is educational: Student training where cost-per-workstation is critical
• ✓ Documentation not needed: Visual examination only, no image capture required
• ✓ Space is limited: Compact footprint important for crowded labs or field work
• ✓ Quick screening: Clinical settings performing rapid specimen checks

Best Value For: Educational institutions, clinical screening environments, budget-conscious laboratories, backup/secondary microscopes

>> Purchase Medical Grade Monocular Microscope

Choose the Binocular Microscope (I4M-BN4A-ISL3) If:

• ✓ Extended viewing essential: Daily microscopy sessions exceeding 2-4 hours
• ✓ Professional environment: Clinical pathology, research laboratory, quality control facility
• ✓ Optical quality matters: Need superior image clarity with semi-plan objectives
• ✓ Multiple users: Shared equipment benefits from Siedentopf head convenience
• ✓ Future expansion planned: Infinity-corrected system supports advanced techniques like phase contrast
• ✓ Documentation occasional: Rare imaging needs don't justify trinocular investment
• ✓ Comfort priority: Want to reduce eye strain and improve ergonomics

Best Value For: Clinical pathology labs, university research facilities, veterinary diagnostics, industrial quality control, professional laboratories with extended daily use

>> Purchase Infinity Binocular Microscope

Choose the Trinocular Microscope (R3M-TN4A-DPL3) If:

• ✓ Documentation is frequent: Regular need to capture images or video
• ✓ Research publication required: Need publication-quality microscopy images
• ✓ Teaching applications: Project microscope view to monitors or record instructional content
• ✓ Digital pathology: Creating digital slide archives or implementing telepathology
• ✓ Quality documentation mandatory: Forensics, manufacturing QC, or clinical applications requiring visual records
• ✓ Collaborative work: Share live microscopy during team discussions or consultations
• ✓ Premium optics desired: Plan objectives deliver exceptional image quality
• ✓ Future-proofing investment: Want microscope ready for evolving digital microscopy requirements

Best Value For: Research institutions, teaching laboratories, digital pathology facilities, quality control departments with documentation requirements, any laboratory where imaging capability is as important as visual observation

>> Purchase Professional Plan Trinocular Microscope

Investment Considerations and Long-Term Value

Total Cost of Ownership Analysis

When comparing microscope investments, consider not just purchase price but total cost over equipment lifespan:

Monocular Microscope:

• Initial cost: Lowest upfront investment
• Upgrade costs: Cannot upgrade to binocular—requires complete replacement
• Imaging costs: Adding camera requires awkward eyepiece adapters ($150-400) with compromised results
• Productivity cost: Eye strain limits effective working hours, reducing throughput
• Replacement timeline: Professionals often replace with binocular within 1-2 years

Binocular Microscope:

• Initial cost: 30-40% more than monocular, but reasonable mid-range investment
• Upgrade costs: Cannot add true trinocular capability—requires replacement if imaging becomes important
• Imaging costs: Eyepiece cameras ($200-600) work but with workflow limitations
• Productivity benefit: Comfortable extended use maximizes effective working time
• Replacement timeline: 5-10+ years for purely visual applications; earlier if documentation needs develop

Trinocular Microscope:

• Initial cost: 20-40% more than binocular (premium for camera port and better objectives)
• Upgrade costs: Fully featured from purchase—no expensive upgrades needed
• Imaging costs: Camera purchase ($300-2000) but purpose-built for professional results
• Productivity benefit: Seamless documentation workflow saves time, comfortable extended use
• Replacement timeline: 10+ years—meets current and future needs
• Future-proofing value: Ready for evolving digital microscopy requirements without replacement

When "Buying Twice" Costs More

A common laboratory purchasing mistake: buying the cheapest option, then replacing it within 1-3 years when needs evolve.

The monocular-to-binocular upgrade path: Laboratory purchases monocular microscope for $1,200. After 18 months, user eye strain and productivity concerns prompt binocular replacement at $1,800. Total spent: $3,000 for equipment that could have been purchased initially for $1,800.

The binocular-to-trinocular upgrade path: Laboratory purchases binocular microscope for $1,800. After 2 years, documentation requirements emerge. Trinocular replacement costs $2,400. Total spent: $4,200 for equipment that could have been purchased initially for $2,400.

Recommendation: Purchase the highest-capability microscope your budget allows. The incremental cost difference between configurations is smaller than the total cost of upgrading later.

Accessorizing Your Microscope: Cameras and Digital Integration

Camera Options for Trinocular Microscopes

Once you've invested in a trinocular microscope, selecting the right camera completes your digital microscopy system:

USB Microscope Cameras ($300-800):

• Connect directly to computer via USB
• Include imaging software for capture and basic analysis
• Resolution typically 1-5 megapixels
• Ideal for documentation, measurements, basic imaging
• Examples: AmScope MU series, ToupCam UCMOS series

HDMI Microscope Cameras ($500-1500):

• Output directly to monitors or projectors via HDMI
• Can also connect to computers via USB
• Higher resolution (5-20 megapixels common)
• Excellent for teaching and collaborative viewing
• Often include SD card slots for standalone operation

Research-Grade Cameras ($1500-5000+):

• Scientific CCD or CMOS sensors optimized for microscopy
• High sensitivity for low-light and fluorescence applications
• Superior color accuracy and dynamic range
• Advanced software for image analysis and processing
• Examples: Basler, FLIR, Photometrics brands

Camera Compatibility: All cameras with C-mount threading (23.2mm) attach to trinocular ports. Verify microscope specifications before purchasing camera.

LabSupplies.com offers microscope cameras compatible with trinocular microscopes—browse our camera selection or contact our specialists for compatibility guidance.

Maintenance and Longevity: Protecting Your Investment

Proper Microscope Care Extends Lifespan 2-3X

All three microscope configurations benefit from consistent maintenance practices:

Daily care:

• Cover microscope with dust cover when not in use
• Wipe eyepieces and objectives with lens paper (never regular tissue)
• Clean mechanical stage and focusing knobs of dust/debris
• Ensure LED illumination is off when not observing specimens

Weekly maintenance:

• Clean objective lenses with lens cleaning solution and lens paper
• Inspect and clean condenser lens
• Check mechanical stage smooth operation, apply lubricant if needed
• Inspect electrical connections and cords for damage

Monthly care:

• Deep clean entire microscope exterior
• Check objective lens mounting for tightness
• Verify focus mechanisms operate smoothly
• Clean illumination system and filters

Annual service:

• Professional cleaning and optical alignment
• Replace worn mechanical components
• Verify illumination system performance
• Test and calibrate as needed

Storage environment: Store microscopes in climate-controlled environments. Excessive humidity promotes fungal growth on optics; temperature extremes damage lubricants and electronics.

Frequently Asked Questions

Q: Can I convert a monocular microscope to binocular?

A: No. The optical design is fundamentally different. Monocular microscopes cannot be converted to binocular configuration. If you need binocular viewing, you must purchase a binocular or trinocular microscope.

Q: Can I add a camera port to a binocular microscope to make it trinocular?

A: No. True trinocular capability requires a purpose-built optical design with a dedicated camera path. While you can use an eyepiece camera in a binocular microscope, this is not equivalent to trinocular functionality and has significant limitations (blocks one viewing path, light leakage issues, focus challenges).

Q: Is a trinocular microscope more difficult to use than binocular?

A: No. From a viewing perspective, trinocular microscopes operate identically to binocular models—you observe through the two eyepieces normally. The third port sits idle until you attach a camera. There's no complexity disadvantage to trinocular design.

Q: Do I need to buy a camera immediately with a trinocular microscope?

A: No. You can use a trinocular microscope as a regular binocular microscope, viewing through the eyepieces with the camera port unused. Purchase a camera whenever your budget and documentation needs dictate. The trinocular port simply provides future capability.

Q: What does "simul-focal" mean on trinocular microscopes?

A: Simul-focal (simultaneous focus) means the eyepieces and camera port maintain focus at the same time. When you focus the specimen visually through the eyepieces, the camera also captures a focused image—no adjustment needed. This is essential for efficient imaging workflow. Not all trinocular microscopes have true simul-focal design; verify this feature if seamless imaging matters to you.

Q: Are plan objectives worth the extra cost?

A: For applications involving digital imaging, plan objectives are essential—they ensure the entire captured field is uniformly sharp. For purely visual observation, semi-plan or even achromatic objectives may suffice, though plan objectives do provide the best viewing experience. If your microscope has a trinocular port and you plan to capture images, plan objectives are strongly recommended.

Q: How long do these microscopes typically last?

A: With proper care, quality laboratory microscopes last 10-20+ years. LED illumination has 50,000+ hour lifespan (essentially unlimited for typical laboratory use). Mechanical components wear gradually but are serviceable. Optics, if properly cleaned and stored, remain excellent indefinitely. The main longevity factor is whether the microscope continues meeting your evolving needs—this is why investing in appropriate capability (binocular vs trinocular) matters.

Q: Can these microscopes be used with eyeglasses?

A: Yes. All three featured microscopes accommodate eyeglass wearers, though comfort varies. The trinocular model (R3M-TN4A-DPL3) specifically features high-eyepoint eyepieces designed for optimal comfort with glasses. Users can also adjust diopter settings to compensate for vision correction, allowing operation without glasses for nearsightedness/farsightedness (though astigmatism correction requires wearing glasses).

Making the Right Choice for Your Laboratory

Selecting between monocular, binocular, and trinocular microscopes is fundamentally a decision about comfort, capability, and future needs:

If your priority is affordability and usage is brief, the Medical Grade Monocular Microscope (R3M-MN4A-DAL3) delivers excellent optical quality at an economical price point.

If your priority is viewing comfort for extended professional use, the Infinity Semi-Plan Binocular Microscope (I4M-BN4A-ISL3) provides superior ergonomics with professional-grade optics at mid-range pricing.

If your priority is comprehensive capability including documentation, the Professional Plan Trinocular Microscope (R3M-TN4A-DPL3) represents a complete digital microscopy solution ready for today's demands and tomorrow's requirements.

The investment difference between configurations—while meaningful—is modest compared to the total cost of replacing equipment when your needs outgrow your initial purchase. Choose based on where you'll be in 3-5 years, not just where you are today.

Expert Guidance Available

Still uncertain which microscope configuration best fits your specific application? Contact the LabSupplies.com microscopy specialists for personalized recommendations based on:

• Your specific application (clinical, research, education, industrial)
• Expected daily usage hours
• Documentation and imaging requirements
• Number of users sharing equipment
• Budget parameters
• Future expansion plans

All microscopes ship from the USA with comprehensive warranty coverage and expert technical support. We're committed to helping you select the ideal microscope configuration for your laboratory's success.

---

About LabSupplies.com: Your trusted source for professional laboratory microscopes and imaging equipment. From economical monocular models to advanced trinocular systems with plan objectives, we provide the microscopy solutions that research institutions, clinical laboratories, and educational facilities depend on for optical excellence.

Browse Related Products:

• Complete Laboratory Microscope Collection
• Microscope Cameras and Imaging Accessories
• Microscope Slides and Specimen Preparation Supplies
