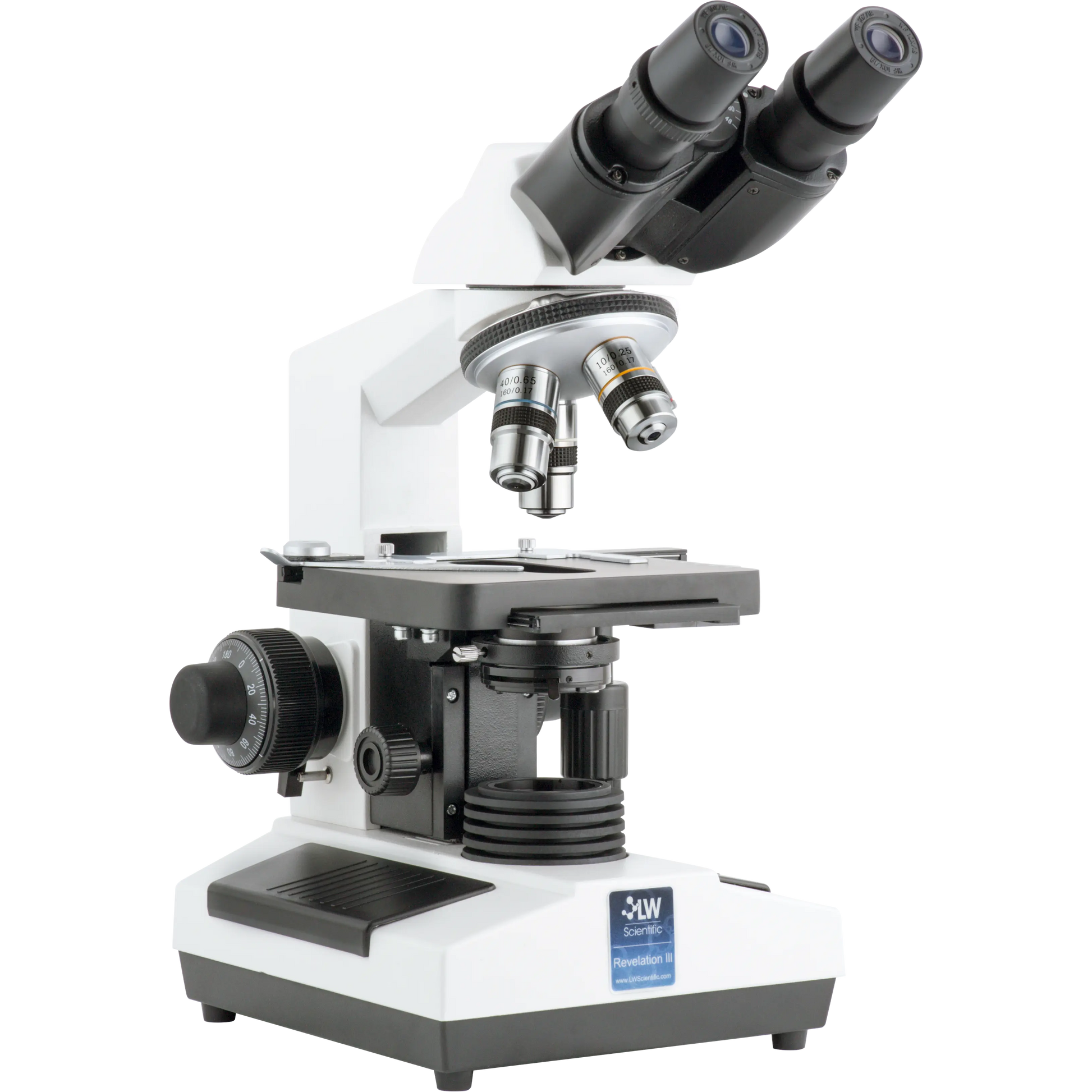

LW Scientific R3M-BN4A-DAL3 Revelation III Microscope – DIN Achromatic Binocular, LED, 4 Objectives

The LW Scientific R3M-BN4A-DAL3 Revelation III microscope provides professional-grade imaging with four DIN achromatic objectives and LED illumination. This Revelation III microscope features 4×, 10×, 40×R, and 100×R oil objectives with a Seidentopf binocular head for clear, color-accurate observations.

Revelation III Microscope Features

Moreover, designed with a durable titanium finish and 30-year anti-fungal coating, this Revelation III microscope withstands demanding laboratory environments. The 30° inclined binocular head rotates 360° with interpupillary adjustment (48–75 mm), while the mechanical stage (140 × 130 mm) with coaxial controls ensures precise specimen positioning.

Precision Optics & Illumination

Furthermore, the 3 W variable LED light source delivers daylight-balanced illumination with low heat output and extended bulb life. The Abbe condenser (NA 1.25) with iris diaphragm offers adjustable contrast. Consequently, users transition seamlessly between brightfield and darkfield techniques, with optional phase-contrast upgrades available.

Clinical & Educational Applications

Ideal for:

• Pathology and histology analysis

• Hematology and cytology studies

• Microbiology specimen examination

• Cell culture monitoring

• Veterinary diagnostic procedures

• Teaching and demonstration labs

Specifications

Model: R3M-BN4A-DAL3
Head: Binocular Seidentopf, 30° incline
Eyepieces: WF10×/18 mm
Objectives: 4×, 10×, 40×R, 100×R oil (DIN achro)
Stage: Mechanical, 140 × 130 mm, 78 × 50 mm travel
Focus: Coarse 30 mm; fine 2 µm
Illumination: 3 W LED, 100–240 V
Condenser: Abbe NA 1.25, iris diaphragm
Body: Titanium finish, anti-fungal
Dimensions: 7″ W × 9″ D × 15″ H
Weight: 14 lbs

Order the LW Scientific R3M-BN4A-DAL3 Revelation III microscope for reliable, high-contrast imaging in clinical, research, and educational settings.
