Portable Rechargeable Microscope R3M-BN4A-DALP Binocular LED USB - Clinical Laboratory

Portable Rechargeable Microscope for Professional Laboratory Work

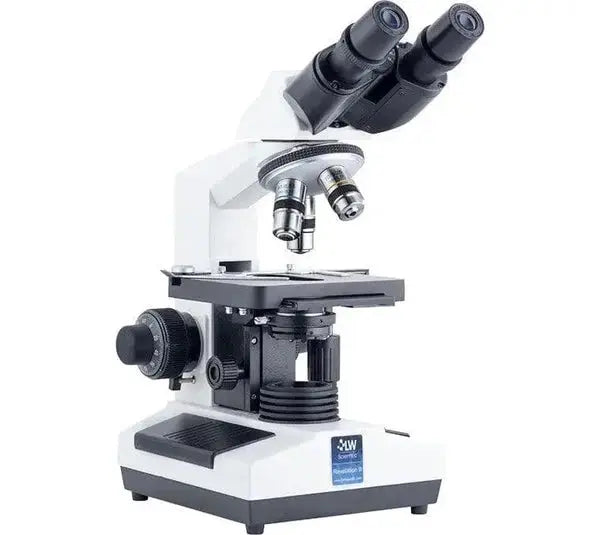

The portable rechargeable microscope R3M-BN4A-DALP represents the pinnacle of field laboratory instrumentation, combining precision optics with battery-powered convenience. This LW Scientific Revelation III binocular microscope delivers professional-grade performance with 4X, 10X, 40X, and 100X oil immersion objectives, enabling accurate serum separation, hematocrit analysis, and cytology examination anywhere—laboratory, clinic, or mobile diagnostics setting.

The portable rechargeable microscope features a 5V DC USB-powered LED illumination system with 50,000-hour rated bulb life, producing daylight-color illumination without heat or flickering. Measure approximately 15 inches height × 9 inches length × 7 inches width and weighing 14 pounds, this binocular unit operates for 2+ days continuously on the included rechargeable battery pack. USB power adapter enables operation from wall outlets, computer ports, or power banks, ensuring uninterrupted function in clinics, mobile labs, and remote testing facilities.

Professional Optics & Oil Immersion Capability: Portable Rechargeable Microscope

This portable rechargeable microscope incorporates DIN achromatic objectives with 30-year anti-fungal coating, parfocal design, and precise color-coded nosepiece rotation ensuring rapid objective changes during clinical work. The mechanical stage (140mm × 130mm) features coaxial drive controls with 78mm × 50mm traverse range, hydraulic slow-close finger mechanism, and stage stop lever for safe specimen placement. The moveable Abbe condenser (NA 1.25) with iris diaphragm and rack-pinion focusing delivers adjustable contrast for blood smears, bacterial cultures, and parasitic organisms.

Binocular viewing head inclines 30 degrees with 360-degree rotation capability, wide-field 10X/18mm eyepieces, diopter adjustment, and interpupillary distance range 55-75mm reducing eyestrain during extended clinical observation sessions. Fine focus graduation of 2 micrometers and coarse adjustment range of 30mm provide precision for sub-cellular detail observation.

Rechargeable Battery System & Field Portability

The portable rechargeable microscope operates via rechargeable lithium battery pack, 110-240V AC auto-switching wall adapter, or any standard USB power source including laptop USB ports and mobile power banks. This flexibility eliminates dependency on laboratory wall power, making it ideal for veterinary clinics, point-of-care testing, field research, mobile phlebotomy services, and educational outreach programs. The compact 14-pound design transports easily in laboratory instrument cases or mobile diagnostic kits.

Built-in LED illumination produces consistent daylight-balanced color temperature without halogen heat, reducing sample degradation during extended observation. Auto-switching power input (100V-240V AC / 50-60Hz) for wall operation, combined with USB 5V DC connection, ensures global compatibility and emergency backup functionality.

Clinical & Veterinary Applications

The portable rechargeable microscope excels in hematocrit separation, serum analysis, urine sediment examination, fecal flotation for parasite screening, and bacterial smear observation. Standard features include dust cover, immersion oil, spare 3W LED bulb, mirror attachment for field use, blue and green optical filters, and comprehensive operation manual. The 30-year anti-fungal coating protects optical elements in high-humidity clinical environments and portable storage conditions.

Ideal for veterinary laboratories, medical clinics, educational institutions, research facilities, and mobile diagnostic services requiring reliable optical precision with battery independence.
