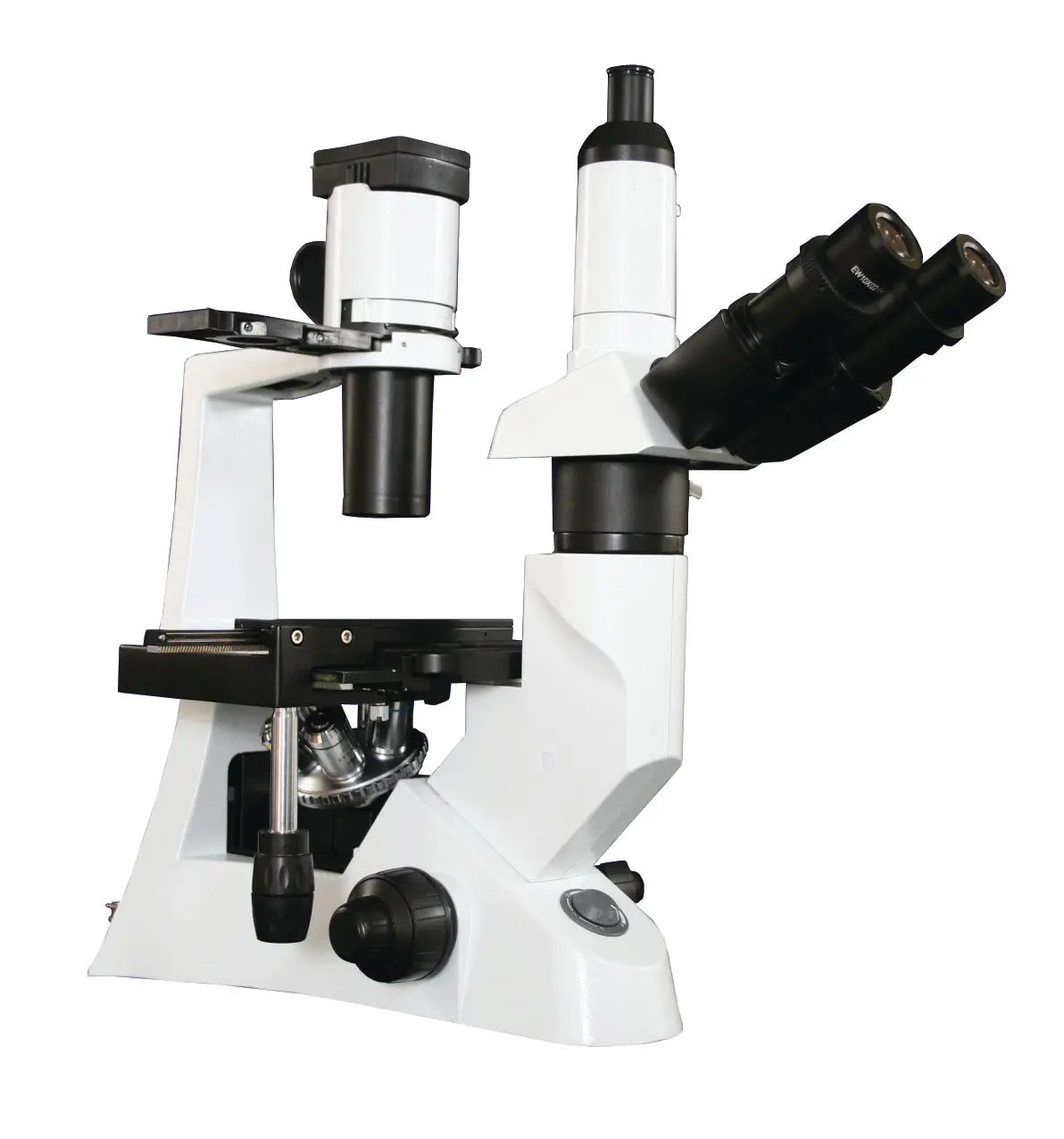

Inverted Microscope Cell Culture | LW Scientific Infinity Trinocular

The inverted microscope cell culture system from LW Scientific delivers exceptional optical clarity and precision for live cell observation, tissue analysis, and laboratory research. This inverted microscope cell culture instrument features an infinity-corrected optical system with Plan objectives (4X, 40X) and Plan Phase objectives (10X, 20X), providing magnification options ideal for detailed cellular examination in petri dishes, culture flasks, and multi-well plates.

Inverted Microscope Cell Culture: Advanced Optics for Research

With its trinocular head inclined at 30°, this inverted microscope cell culture system supports comfortable extended viewing sessions while enabling simultaneous camera integration for documentation. The EW 10X/22 extra wide field eyepieces deliver expansive visualization with 22mm field of view, ensuring comprehensive specimen observation.

The quintuple nosepiece accommodates five objectives for versatile applications including phase contrast microscopy, fluorescence imaging, and microinjection procedures. Meanwhile, the Abbe condenser with 20X phase contrast enhances specimen visibility for unstained transparent samples.

Professional-Grade Features

Key specifications include:

• Infinity optical system with Plan 4X and 40X objectives

• Plan Phase 10X and 20X objectives for phase contrast

• Trinocular head with 48-75mm interpupillary distance adjustment

• Mechanical stage (160mm x 250mm) with auxiliary stage (70mm x 180mm)

• Coaxial X-Y stage controls with 120mm x 78mm traverse range

• Coarse focus adjustment: 37.7mm range

• Fine focus adjustment: 0.002mm precision per rotation

• 6V/30W halogen illumination with adjustable brightness

• Centering eyepiece for phase objective alignment

Complete Microscopy Solution

This inverted microscope cell culture package includes green, blue, and neutral density filters, immersion oil, dust cover, instructional manual, and warranty card. The compact design (20" H x 21" L x 11" W, 24 lbs) fits efficiently in biosafety cabinets and laboratory workstations, making it suitable for clinical diagnostics, biological research, pathology, and educational institutions.
