Chiller, CC-508 -55 °C to +200 °C

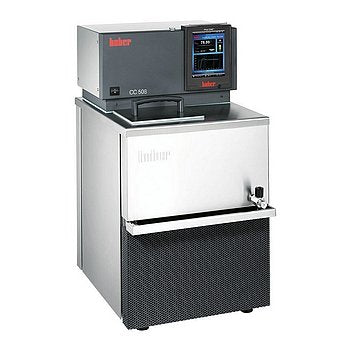

HUBER CC-508 Refrigeration Bath Circulator

• Model Specifications:

• Model: CC-508, Group 2
• Order No.: 2045.0002.01
• Price: $18,750 USD

• Temperature Performance:

• Operating range: -55°C to +200°C
• Temperature stability: ±0.02K
• Precise temperature control for demanding applications

• Applications: Suitable for photometers, refractometers, viscometers, double-jacketed reaction vessels, autoclaves, mini-plants, kilo laboratories, freezing point determination, deep temperature calibration, petroleum tests, and materials testing

• Pilot ONE Controller Features:

• 5.7" multi-touch color TFT touchscreen display
• Plug & Play technology for easy setup
• Comfortable menu navigation with smartphone-like operation
• Favorites menu and one-click operation
• Integrated technical glossary
• Programmer with calendar and clock functions
• 2-point calibration capability
• Pt100 external sensor connection

• Safety Features:

• Safety class III/FL (DIN 12876)
• Overtemperature and low level protection
• Protection class IP20
• Extensive safety and warning functions

• Physical Specifications:

• Dimensions: 410 x 480 x 764 mm (W x D x H)
• Weight: 66 kg net
• High-quality stainless steel construction
• 5-liter bath vessel volume
• Front drain fitting for easy emptying

• Advanced Features:

• Thermoregulated cover plate to prevent condensation and ice buildup
• Powerful pressure/suction circulation pump
• Electronic upgrade capability with e-grade codes for additional functions
• TAC cascade controlling, temperature ramps, user menus, graphic display options

• Connectivity:

• Integrated USB and Ethernet ports
• RS232 interface
• PC/network connection for remote control and data transmission

• Professional Grade: Designed for highest demands in laboratory and industrial temperature control applications
